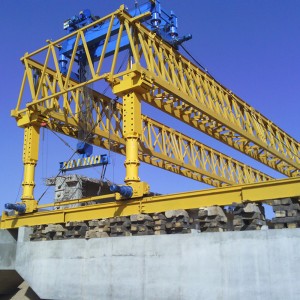

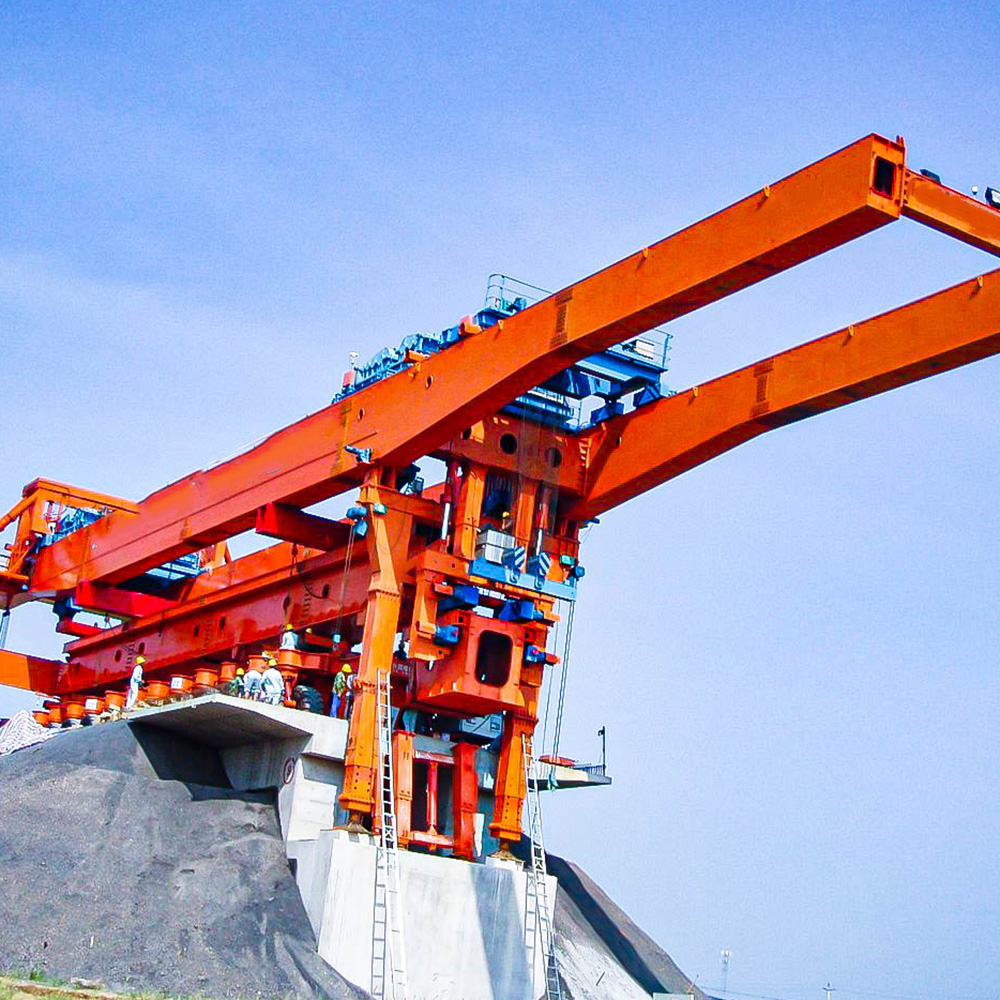

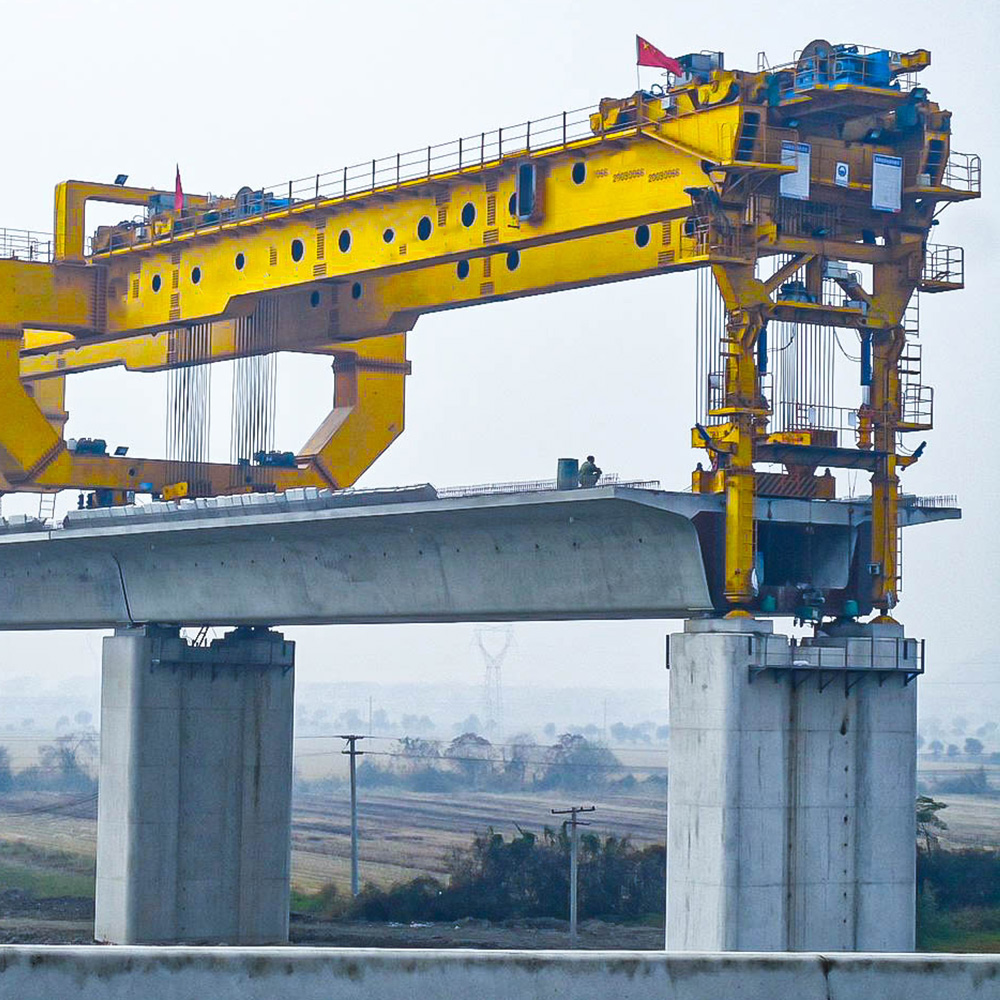

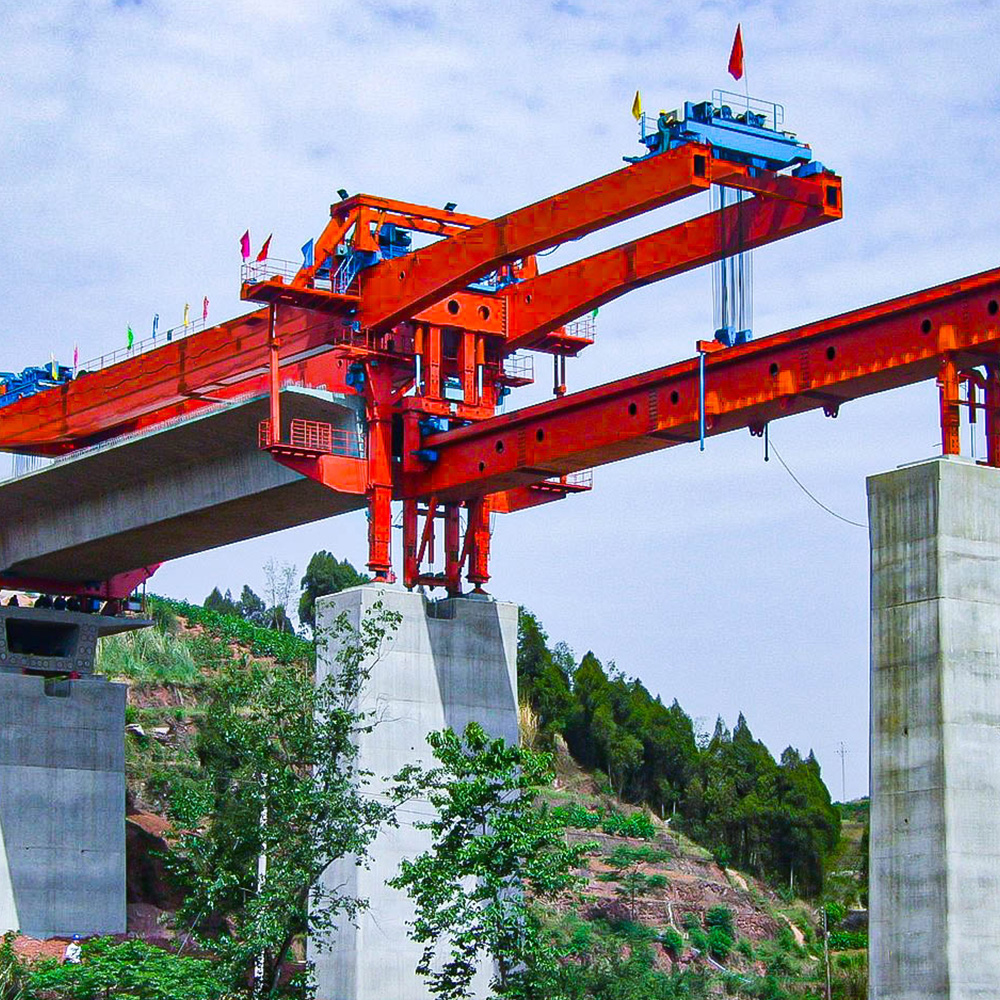

Bridge Girder Launcher

Bridge Girder Launcher, a cutting-edge solution designed to transform the process of bridge construction. This advanced piece of equipment is engineered to simplify the launching and installation of bridge girders, providing unparalleled efficiency, precision, and safety. The Bridge Girder Launcher is an indispensable asset for modern infrastructure projects, ensuring timely and accurate completion of even the most challenging bridge constructions.

The Bridge Girder Launcher represents the pinnacle of innovation in bridge construction technology. By integrating advanced features and robust design, it delivers exceptional performance and reliability. Construction teams can achieve greater efficiency, precision, and safety, ultimately leading to successful project outcomes. With the Bridge Girder Launcher, you can elevate your bridge construction capabilities and ensure the highest standards of quality and safety.

Product Description

Technical Parameter

Parameter	Specification
Maximum Lifting Capacity	Up to 200 tons
Maximum Span Capacity	Up to 50 meters
Main Girder Length	Up to 60 meters
Support Leg Height	Adjustable from 10 to 20 meters
Lifting Speed	0.5 meters per minute
Travel Speed	5 meters per minute
Power Supply	380V, 50Hz, 3-phase or customized
Control System	Automated with remote control
Precision and Safety Features	Sensors and safety interlocks
Load Monitoring Systems	Included for safe operation
Stability Control	Built-in to prevent tipping
Emergency Stop Mechanisms	Integrated for safety
Operating Temperature Range	-20°C to +50°C
Weather Resistance	Designed for all-weather operation
Terrain Adaptability	Suitable for uneven or sloped terrain
Assembly and Disassembly Time	Varies, typically hours to days
Transportability	Modular design for easy transport

Advantages

Advanced Launching Mechanism: The Bridge Girder Launcher is equipped with a state-of-the-art launching mechanism that allows for the smooth and precise placement of girders. Its innovative design minimizes the risk of misalignment and structural errors;
High Load Capacity: Capable of handling heavy loads, this launcher can support and maneuver large girders with ease. Its robust construction ensures it can handle the demands of large-scale bridge projects;
Automated Controls: Featuring an intuitive control system, the Bridge Girder Launcher offers automated operations that reduce the need for manual intervention. The controls provide real-time monitoring and adjustments, enhancing accuracy and reducing human error;
Safety Enhancements: Safety is a top priority with the Bridge Girder Launcher. It includes multiple safety features such as emergency stop functions, overload protection, and stability monitoring systems to ensure the safety of the operators and the construction site;
Versatile Design: The versatile design of the Bridge Girder Launcher allows it to be used in a variety of bridge construction scenarios, including different types of girders and spans. Its adaptability makes it suitable for various project requirements;
Durability and Reliability: Built with high-quality materials and engineered for durability, the Bridge Girder Launcher is designed to withstand harsh construction environments. Its reliability ensures consistent performance over the lifespan of multiple projects.

Application

Highway Bridges: Ideal for the construction of highway bridges, ensuring quick and accurate placement of girders to meet tight project timelines;
Railway Bridges: Perfect for railway bridge projects, providing the precision needed for the safe and efficient installation of girders;
Pedestrian Bridges: Suitable for the construction of pedestrian bridges, offering a versatile solution for various bridge designs and specifications
