Container Straddle Carrier

Frame/Structure: The main body that straddles the container, providing support and stability.
Spreader: The attachment used to lock onto and lift containers by their corner castings.
Wheels/Tires: Rubber tires that allow the carrier to move freely across the terminal.
Hoist Mechanism: The system that lifts and lowers the spreader and container.
Cabin: The operator's compartment, equipped with controls and monitoring systems.
Engine/Motor: Powers the movement of the carrier and the hoist mechanism, typically diesel or electric.
Steering System: Enables precise maneuverability of the carrier.
Control System: Includes manual controls, automation features, and safety systems.

Product Description

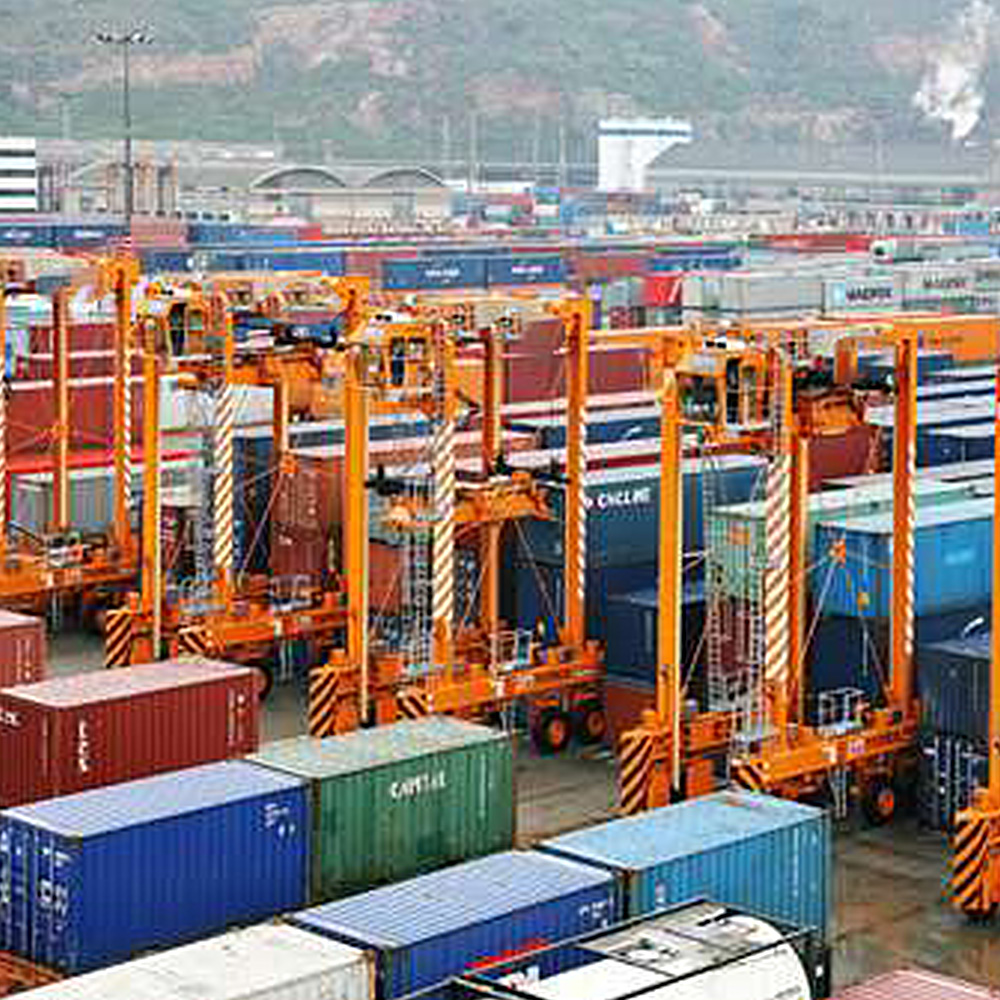

A container straddle carrier is a type of mobile equipment used for lifting and transporting shipping containers within container terminals, ports, and storage yards. It straddles the container, lifting it from the top and carrying it over short distances. Straddle Carriers pick up and carry containers while straddling their load and connecting to the top lifting points via a container spreader. Straddle carriers are highly efficient for moving containers between the stacking yard and transportation vehicles such as trucks and trains.

Technical Parameter

Parameter	Specification
Lifting Capacity	Up to 60 tons
Stacking Height	Up to 4 containers high
Travel Speed	Up to 30 km/h
Lifting Speed	Up to 30 meters per minute
Power Source	Diesel, Electric, or Hybrid
Control Method	Cabin control, Remote control, or Fully automated
Wheelbase	Varies based on model
Turning Radius	Varies based on model
Operating Environment	Outdoor
Dimensions	Varies based on model and specifications
This table provides an overview of typical specifications for a container straddle carrier. Specific models and configurations may vary, and we can tailor these parameters to meet your unique requirements of different container terminals and ports.

Advantages

Mobility and Maneuverability:1. Rubber Tires: Provide excellent traction and mobility on various surfaces, allowing the carrier to move freely within the terminal. 2. Four-Wheel Steering: Enhances maneuverability, enabling the carrier to navigate tight spaces and make precise turns. 3. High Travel Speeds: Capable of moving at speeds up to 30 km/h, facilitating quick transport of containers.
Lifting Mechanism:1. Spreader with Twistlocks: Secures containers by locking onto their corner castings, ensuring safe and stable lifting. 2. High Lifting Capacity: Typically able to lift up to 60 tons, suitable for handling fully loaded containers. 3. Adjustable Height: Capable of stacking containers up to 4 high, optimizing storage space.
Control and Operation1. Operator Cabin: Ergonomically designed with comprehensive controls and visibility, providing a safe and comfortable working environment. 2. Remote Control: Some models offer remote control capabilities for enhanced flexibility and safety. 3. Automated Systems: Advanced models come with automation features, such as automated steering and container handling, reducing operator fatigue and increasing efficiency.
Power and Efficiency1. Diesel, Electric, or Hybrid Engines: Options for different power sources to meet specific operational and environmental needs. 2. Energy Recovery Systems: Some carriers are equipped with systems that recover energy during braking, improving fuel efficiency and reducing emissions.
Safety Features1. Load Sensors: Monitor and prevent overloading, ensuring safe operation. 2. Anti-collision Systems: Reduce the risk of accidents by detecting obstacles and automatically stopping the carrier. 3. Emergency Stop Buttons: Easily accessible controls for quickly stopping the carrier in case of an emergency.
Durability and Maintenance1. Robust Frame: Built to withstand the heavy-duty demands of container handling. 2. Easy Maintenance Access: Design allows for quick and easy access to key components for maintenance and repairs. 3. Weather Resistance: Engineered to operate reliably in various weather conditions, including extreme heat, cold, and humidity.
