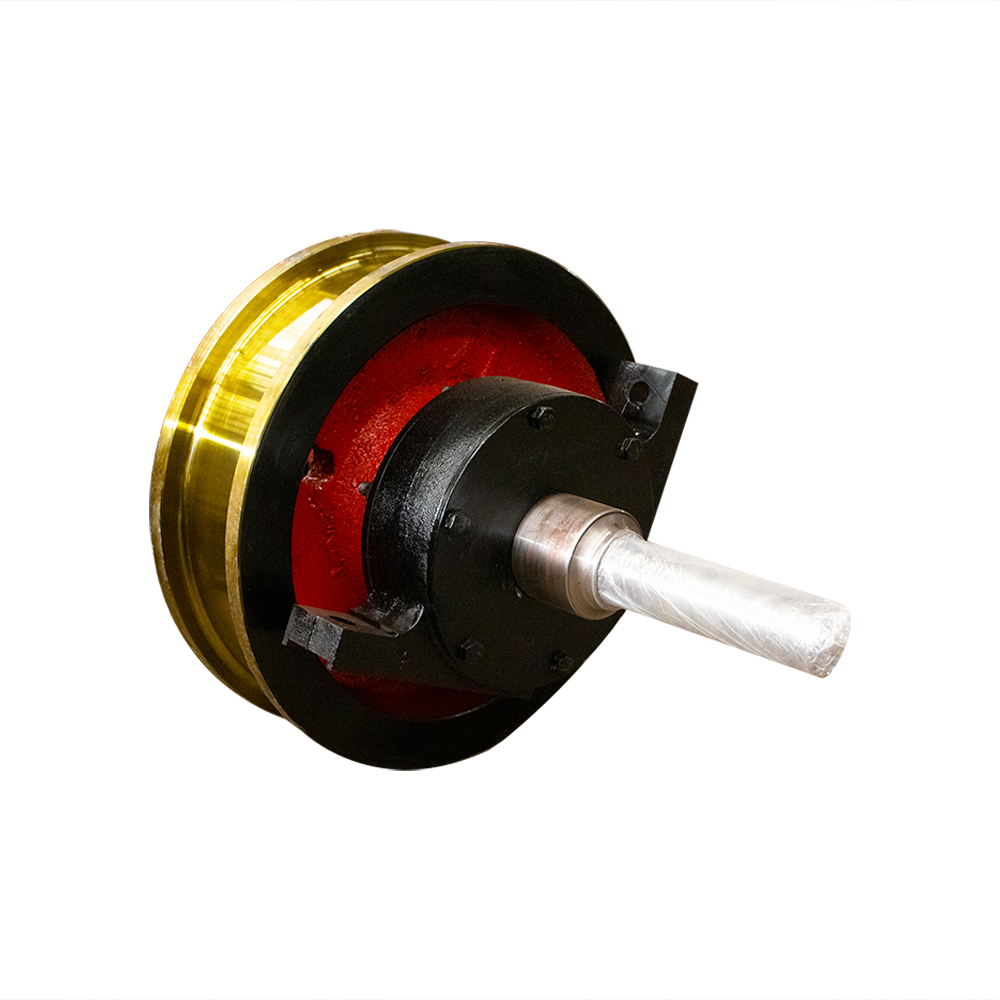

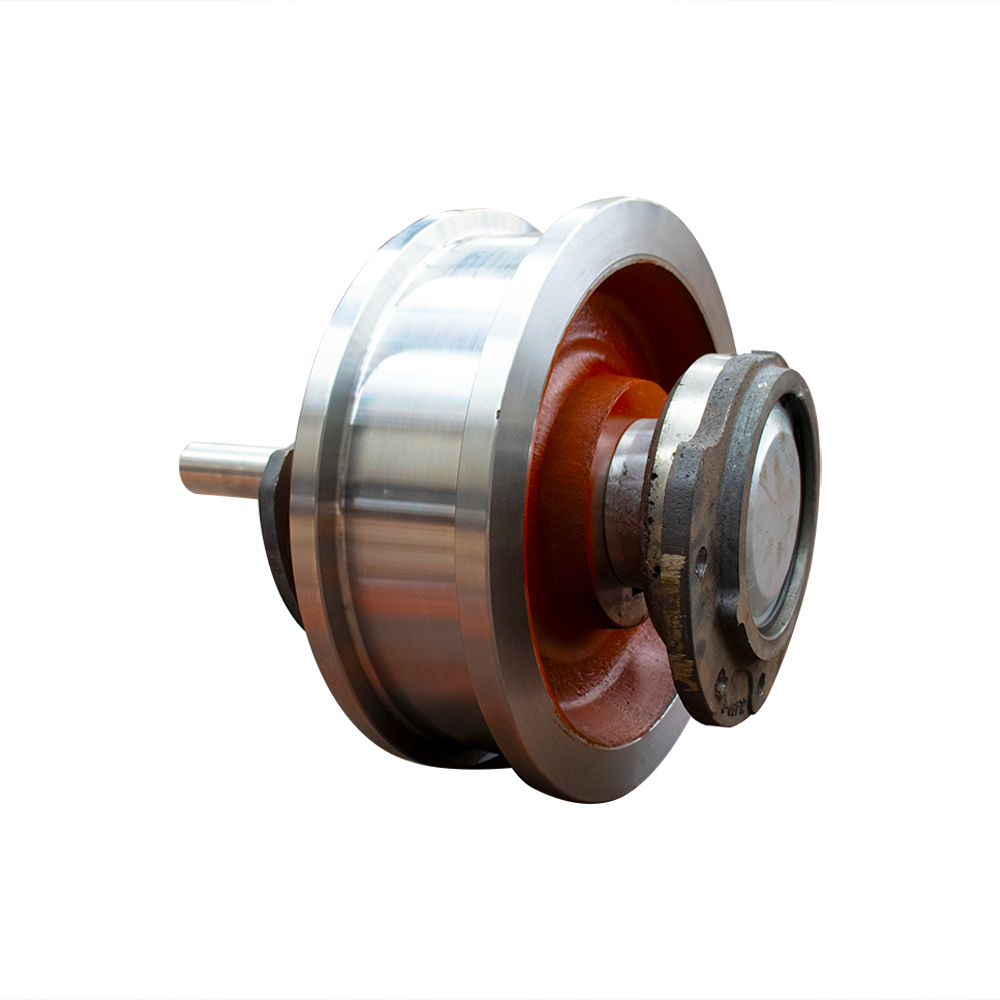

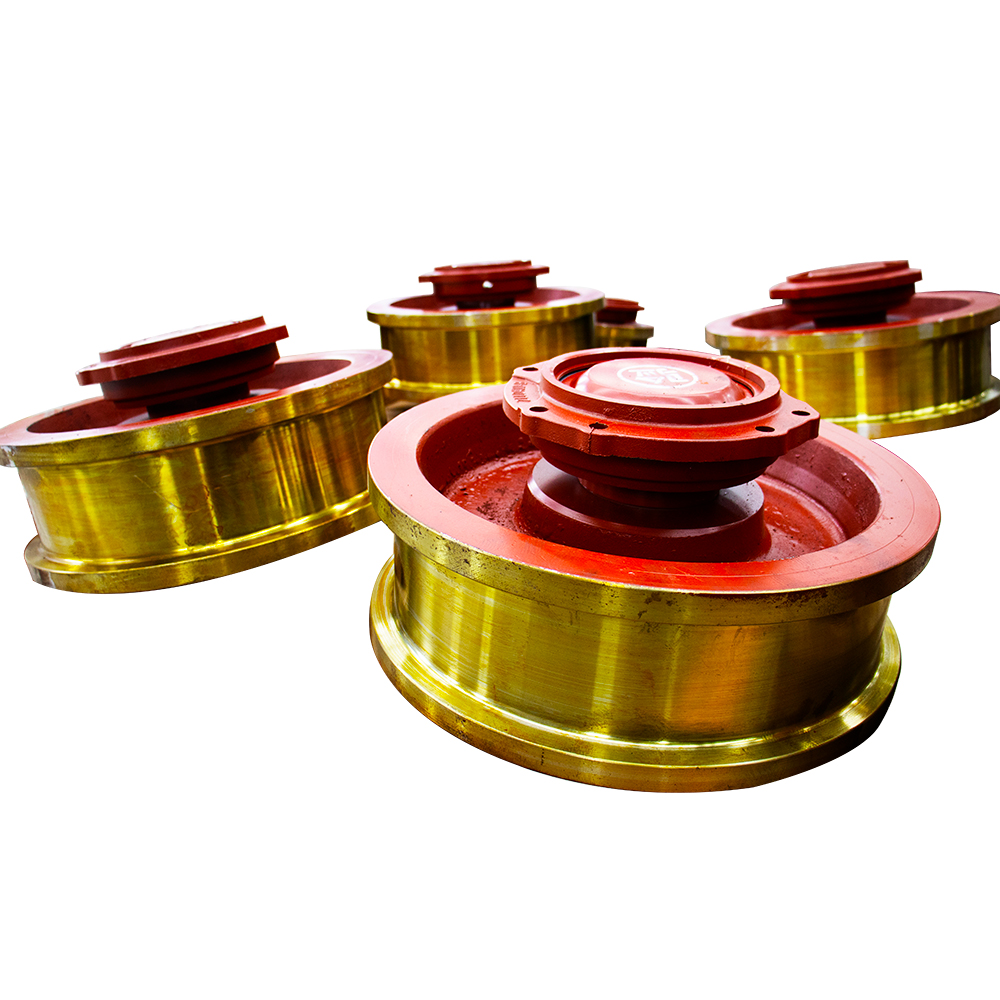

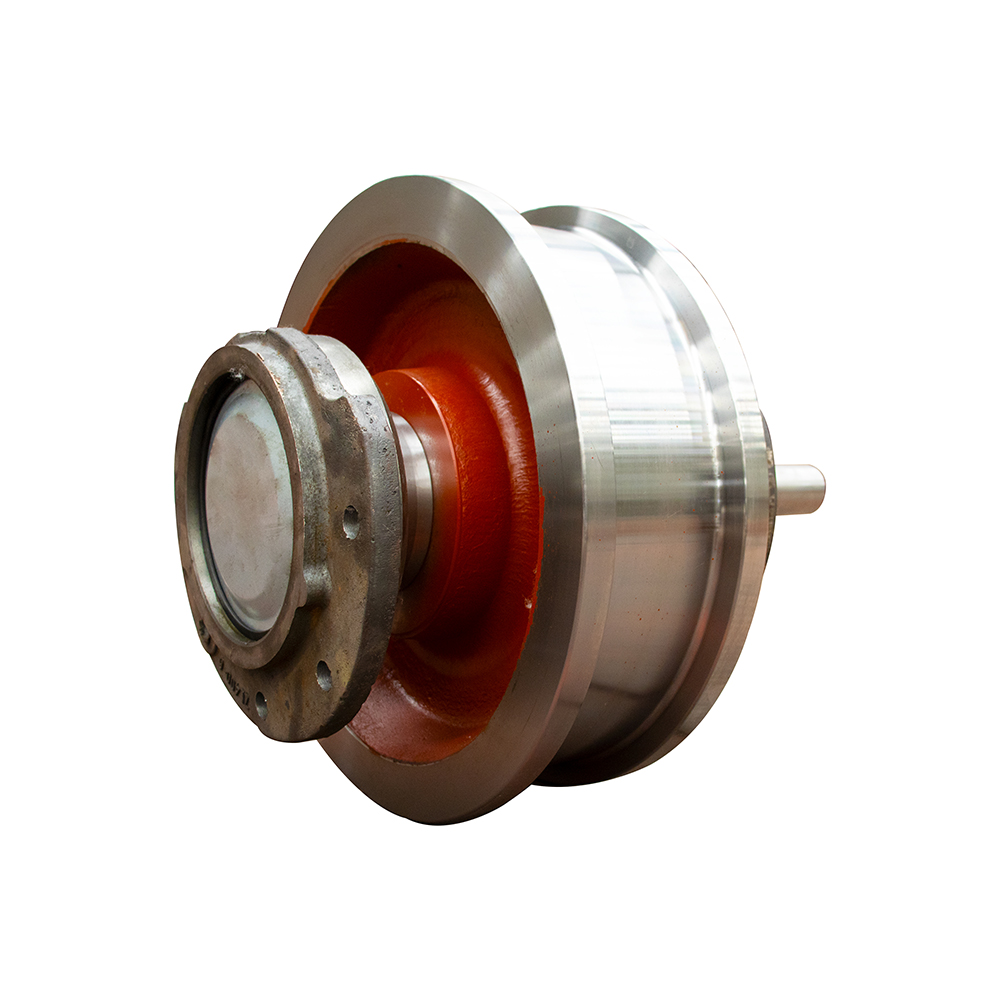

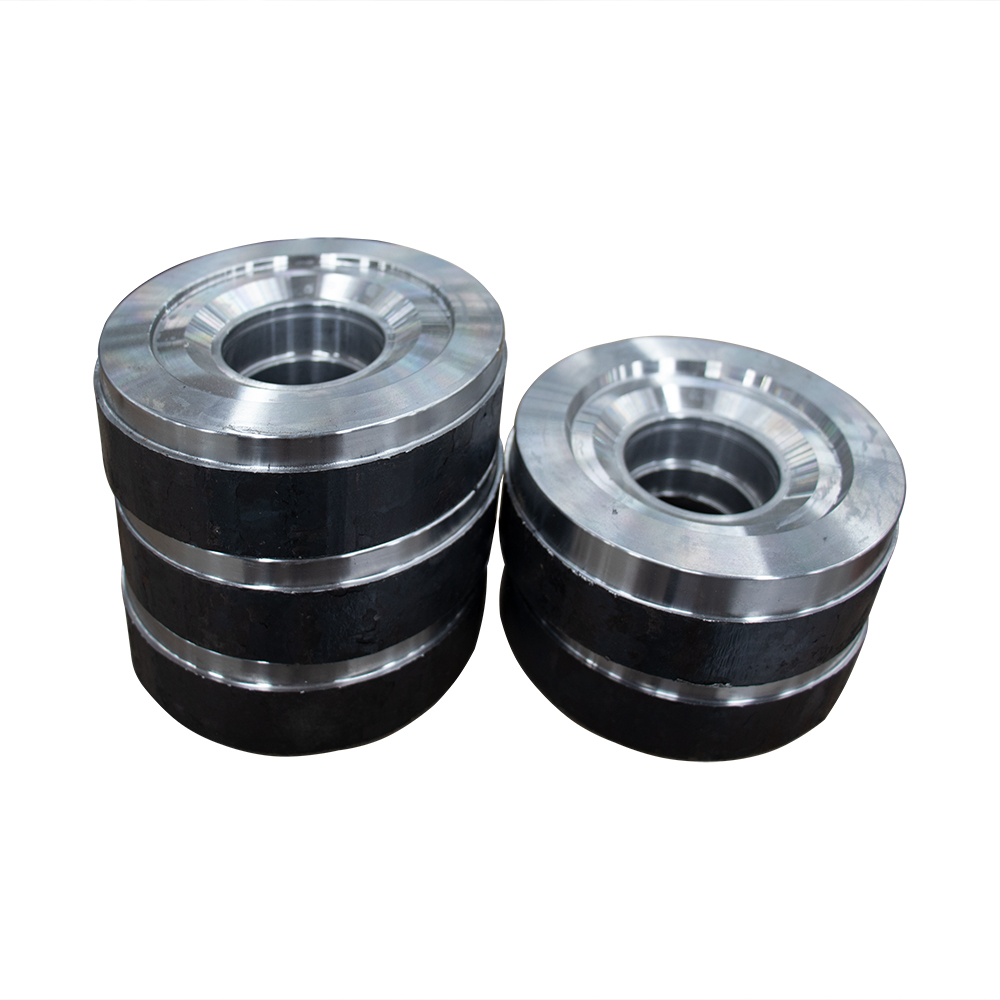

Crane Wheels

We provide standard and custom wheels to various ports, terminals, and the steel industry. Our wheels are available in forged steel, cast steel, or ductile iron, ranging in sizes from 100 mm to 1000 mm. They can be tailored to meet specific customer requirements.

Product Description

Wheels are widely used in the Crane manufacture, the port authority, transportation, Airlines, Railway locomotive, large-scale construction machinery and so on. Huasui Crane manufactures quality wheel to any specification, each of these in-service factors must be carefully considered before the combination of wheel design, material selection, hardness patter and heat treating technology selected. our wide range of machinery and manufacturing experience, coupled with our dedication to quality, make the right choice for all your wheels requirements. Forged and Casting Crane Wheels are available in a wide range of standard sizes. in addition, crane wheels to meet your special design requirements can be produced in virtually any size, configuration and surface finish condition. We maintain a large inventory of carbon and alloy steels to meet your specific needs.

Technical Parameter

NO.	Item	Description
1	Wheel Materials	42CrMo, 60Mn, 65Mn,55#,60#,ZG340-640 .etc
2	Manufacturing Process	Forging,Casting,Roll milling .etc
3	Diameter/mm	200,250,315,400,500,630,710,800,900,1000 .etc
4	Wheel Gross Weight/kg	82-87kg;133-163kg;200-262kg;284-405kg;605-1000kg .etc
5	General Bearing Force	8-104 Tons
6	Application	Overhead cranes,gantry cranes,transfer carts,trains.etc

Advantages

Durable Materials: Crane wheels are typically made from high-strength materials like forged steel or cast iron, allowing them to carry extremely heavy loads without deformation or failure.
Robust Design: Their robust construction ensures they can support the weight of the crane and the loads it lifts, providing reliable performance in demanding applications.
Low Friction: Designed to minimize friction, crane wheels enable smooth and efficient movement along tracks, reducing the effort required to move the crane and its load.
Accurate Tracking: Crane wheels are engineered for precise tracking along the rails, ensuring the crane moves accurately and stably during operations.
Enhanced Control: This precision enhances the operator's control over the crane, allowing for more accurate positioning of loads.
Reduced Maintenance Costs: The durability and smooth operation of crane wheels reduce the frequency and cost of maintenance and repairs.
