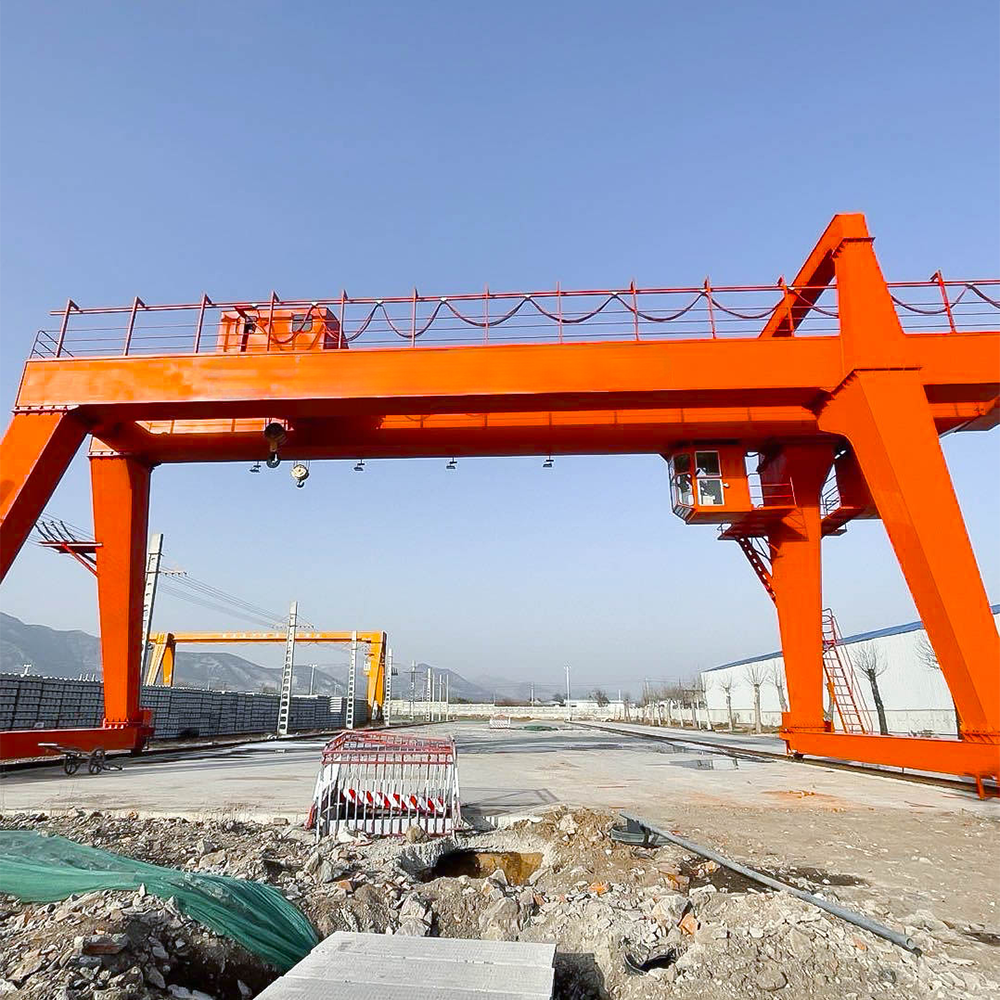

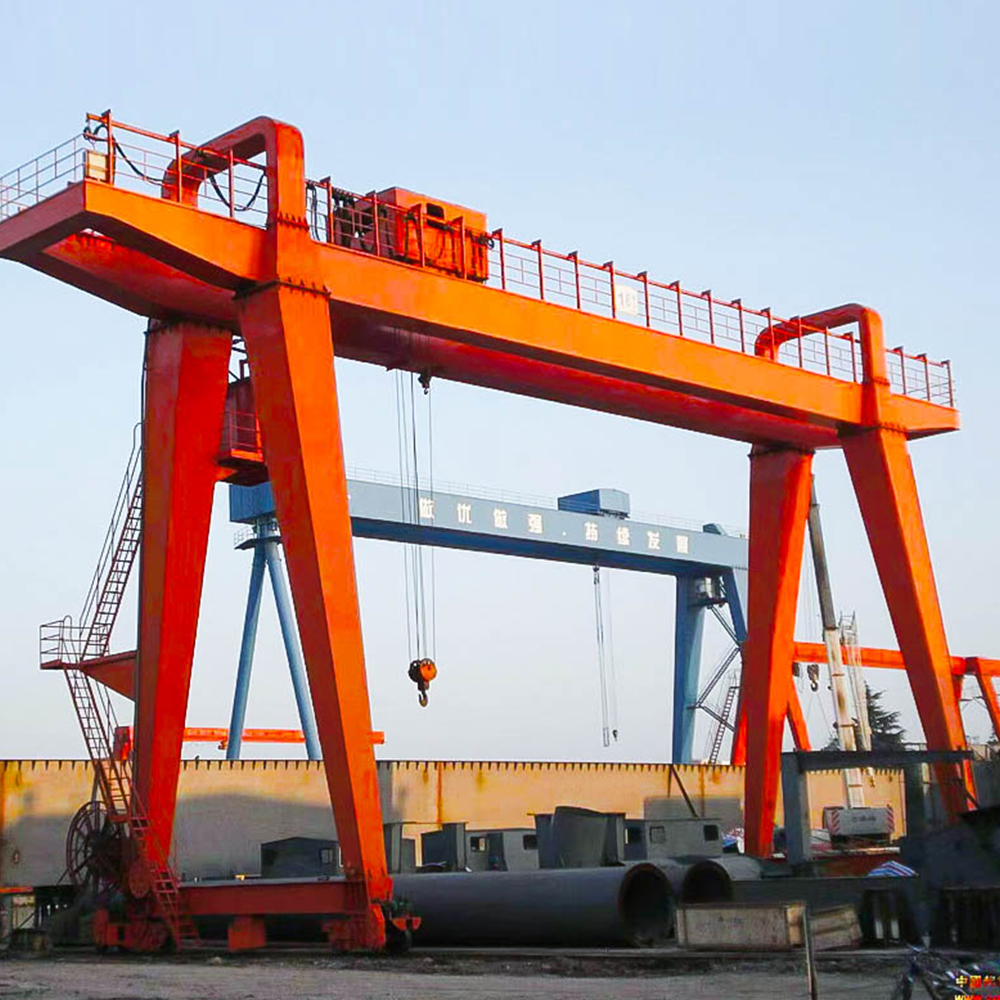

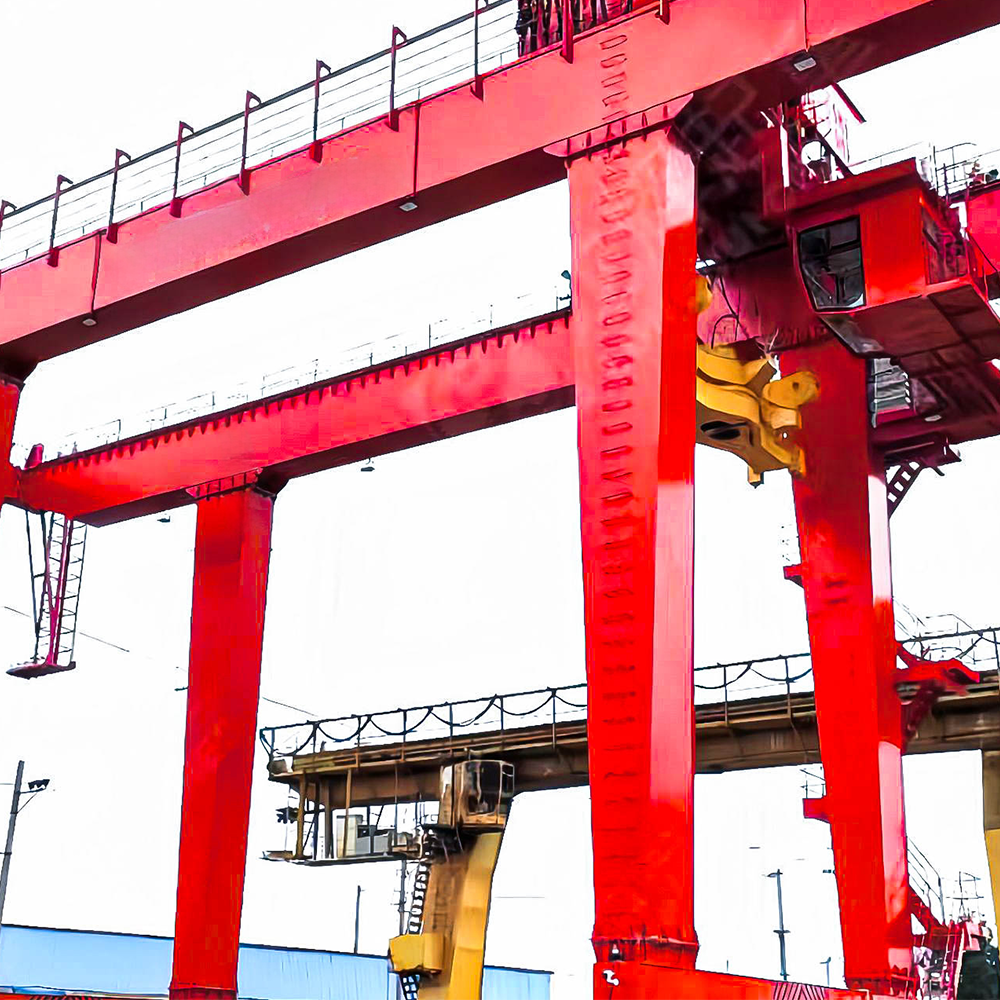

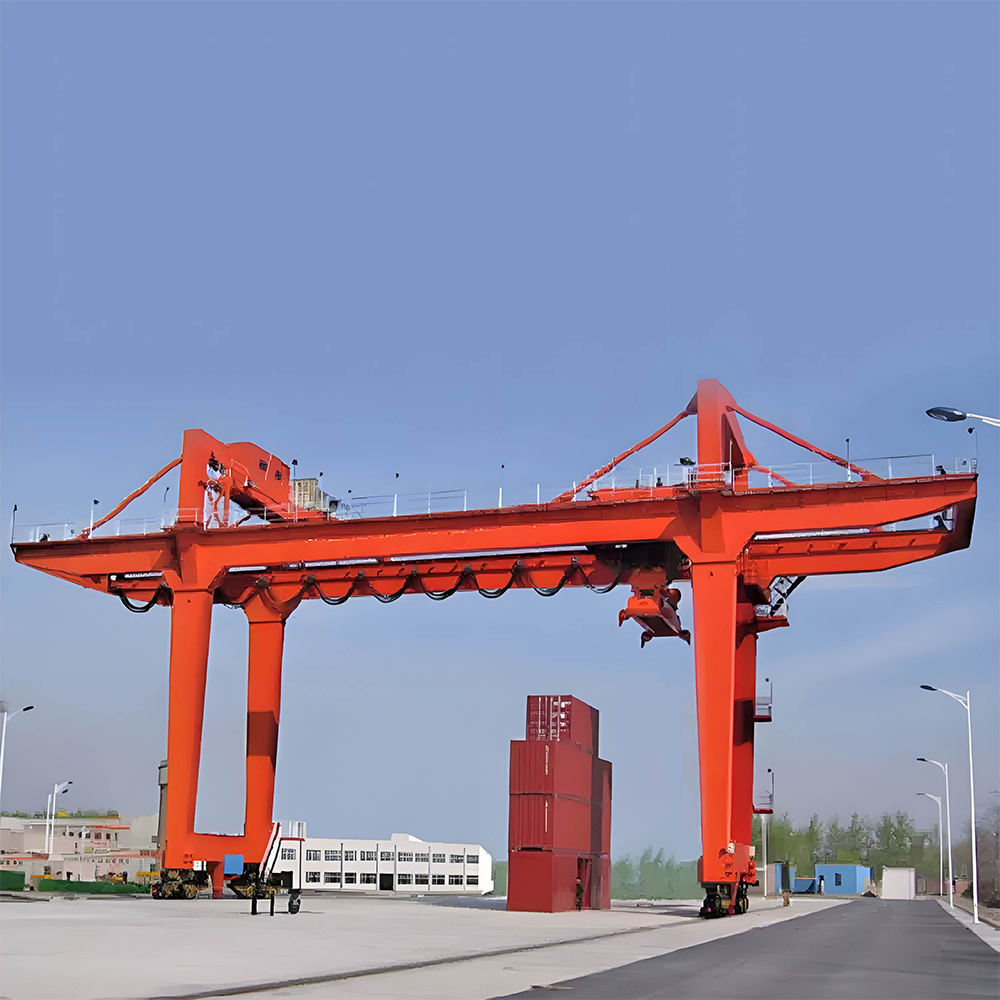

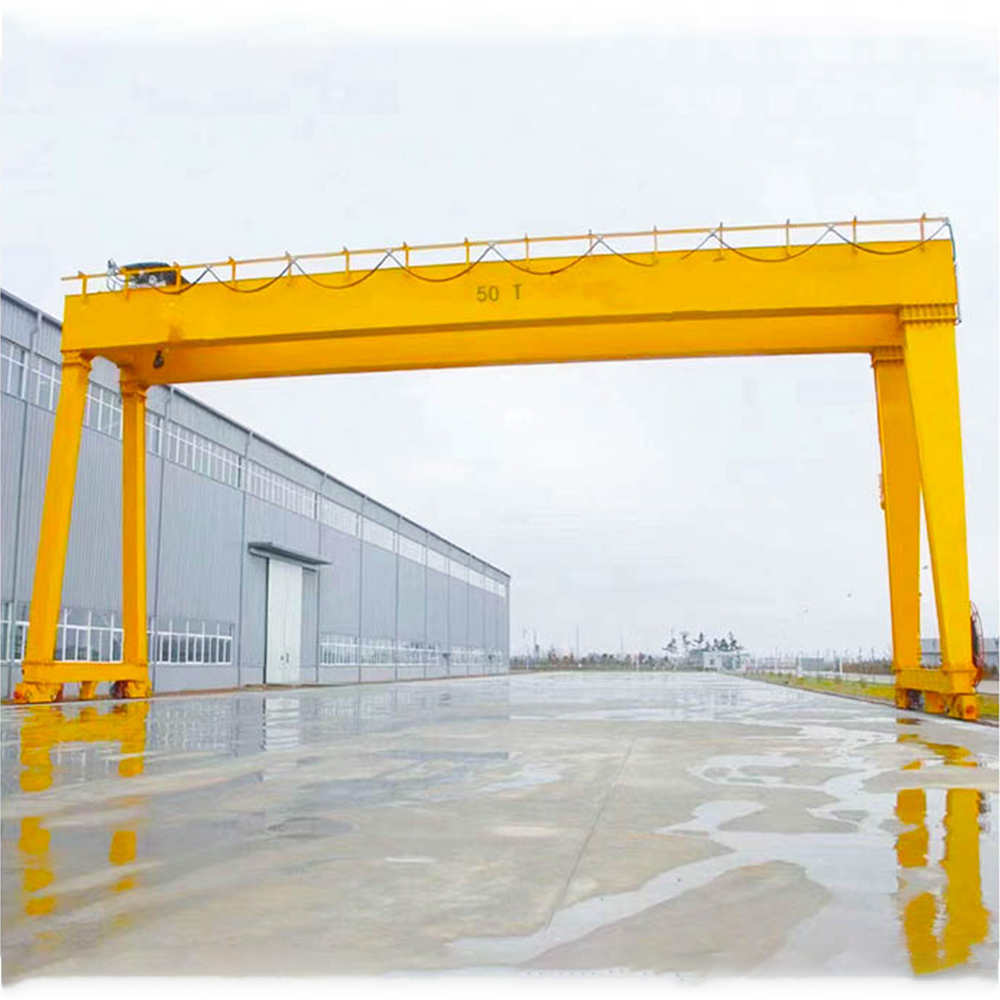

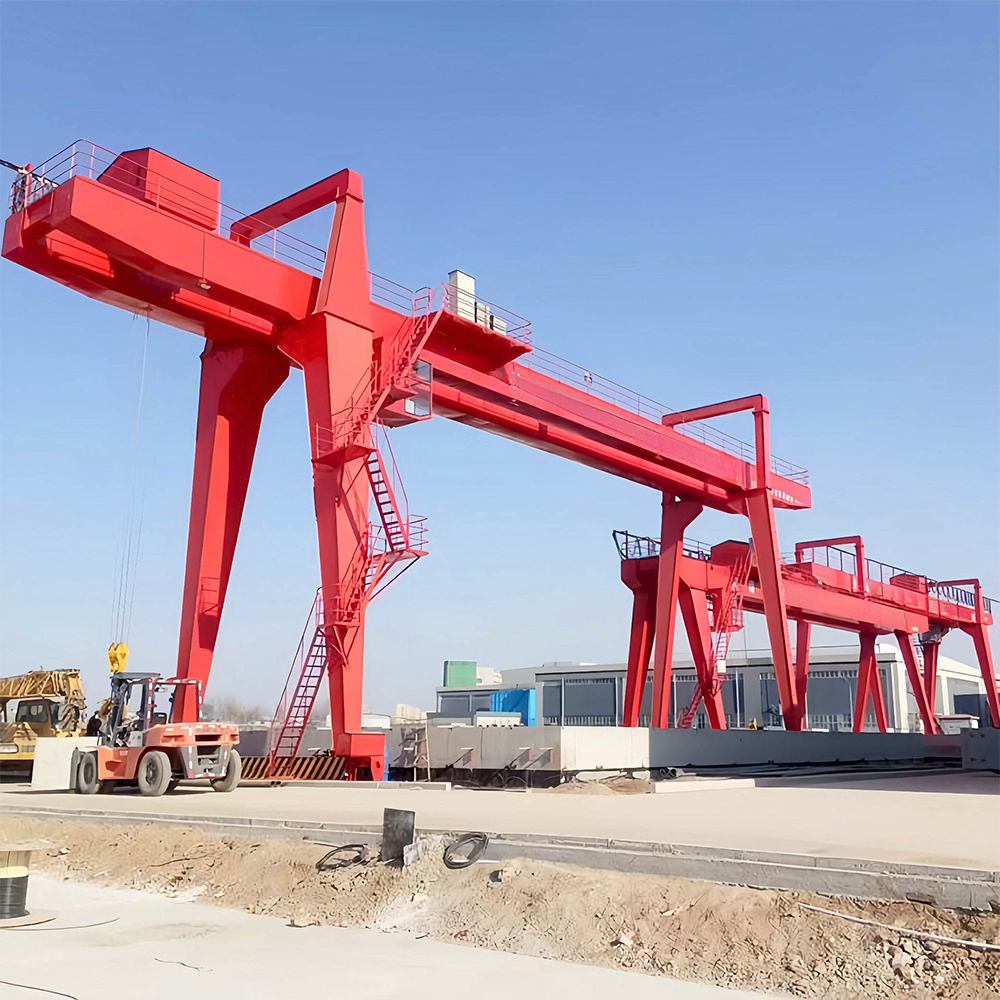

Double Girder Gantry Crane
A double girder gantry crane is typically consists of two horizontal girders supported by vertical legs on either side. Double girder gantry cranes are commonly used in industrial settings for heavy-duty lifting applications, such as loading and unloading cargo in shipping yards or moving materials in manufacturing facilities. They offer greater stability, height, and span capabilities, making them suitable for handling large and heavy loads.
- It is used for the beam lifting in precasting plant, bridges transporting and bridges erecting, etc with the special spreader.
- Compared with ordinary gantry cranes, installation and disassembly are convenient and quick, economical and practical.
Product Description
A double girder gantry crane is typically consists of two horizontal girders supported by vertical legs on either side. Double girder gantry cranes are commonly used in industrial settings for heavy-duty lifting applications, such as loading and unloading cargo in shipping yards or moving materials in manufacturing facilities. They offer greater stability, height, and span capabilities, making them suitable for handling large and heavy loads.
Technical Parameter
| Capacity | Main Hook | ton | 5 | 10 | 20 | 32 | 50 | 75 | 100 | 160 | 200 | 320 |
| Aux Hook | / | / | 5 | 5 | 10 | 20 | 20 | 50 | 50 | 80 | ||
| Span | m | 18-35 | ||||||||||
| Lifting Height | 10/12 | 15 | ||||||||||
| Speed | Main Hook | m/min | 12.5 | 8.5 | 7.2 | 7.5 | 5.9 | 3.9 | 3.1 | 3.5 | 3.6 | |
| Aux Hook | / | / | 12.7 | 12.7 | 13.2 | 7.2 | 7.2 | 5.9 | 6 | |||
| Trolley Travelling | 37.2 | 43.8 | 36.6 | 37 | 38.5 | 38.4 | 33.9 | 22.5 | 29 | 16.7 | ||
| Crane Travelling | 37.7 | 37.7 | 38/44 | 38 | 37.8/44 | 4.1-41 | 3.4-34 | 2.8-28 | ||||
| Working Class | A5 | |||||||||||
| Power Source | 380V/50Hz/3-phase (customizable) | |||||||||||
Advantages
- Higher Load Capacity: Double girder gantry cranes can handle heavier loads compared to single girder cranes due to the additional support provided by the second girder.
- Greater Span: They can span larger distances, making them suitable for wide industrial spaces.
- Increased Stability: The dual girders provide better stability, reducing the risk of sway during lifting operations.
- Height: They can offer greater lifting heights as the hoist is placed between the girders rather than below a single girde
- Customization: These cranes can be customized with various lifting attachments and additional features to suit specific needs.
Application
- Construction Sites: For lifting and transporting heavy construction materials.
- Shipyards: For handling large ship components and materials.
- Warehouses: For moving heavy goods and products.
- Manufacturing Plants: For assembling heavy machinery and equipment.
- Steel Yards: For moving large steel beams and sheets.
