Electric Scissor Lift Platform

An electric scissor lift platform is a versatile and essential piece of equipment widely used in various industries for safely lifting personnel and materials to elevated work areas. These platforms are known for their stability, ease of use, and ability to reach significant heights while providing a large, stable work area. You can select the right scissor lift platform to meet your specific needs and enhance productivity in your workplace.

Scissor Mechanism: The platform is raised and lowered by a crisscrossing (scissor-like) mechanism that extends or contracts to provide vertical movement.
Electric Motor: Powered by an electric motor, which can be either battery-operated or connected to an external power source.
Platform: A spacious and sturdy platform with guardrails for safety, often equipped with extendable sections to increase the working area.
Controls: Intuitive control panel located on the platform and/or at the base, allowing for precise movement and positioning.

Product Description

Technical Parameter

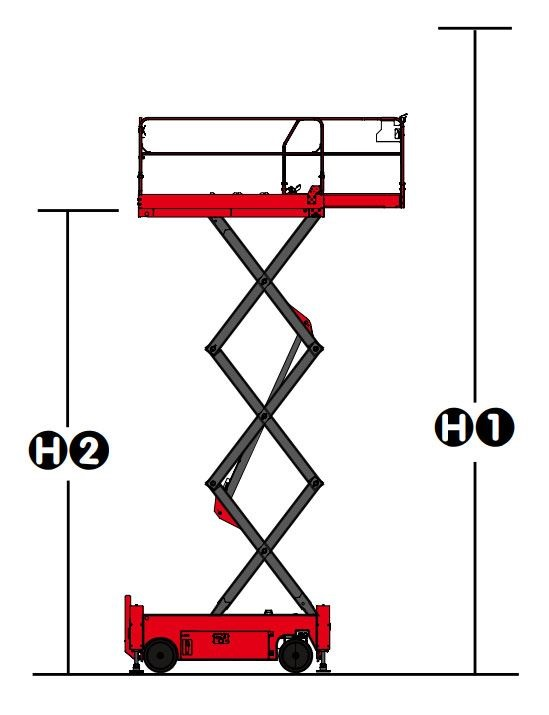

Working height max H1	8 m	10 m	12 m	14 m	16 m
Platform height max H2	6 m	8 m	10 m	12 m	14 m
Platform extension size	1 m
Lifting capacity	550 kg	450 kg	400 kg	350 kg	230 kg
Lifting capacity on the extension	120 kg				100 kg

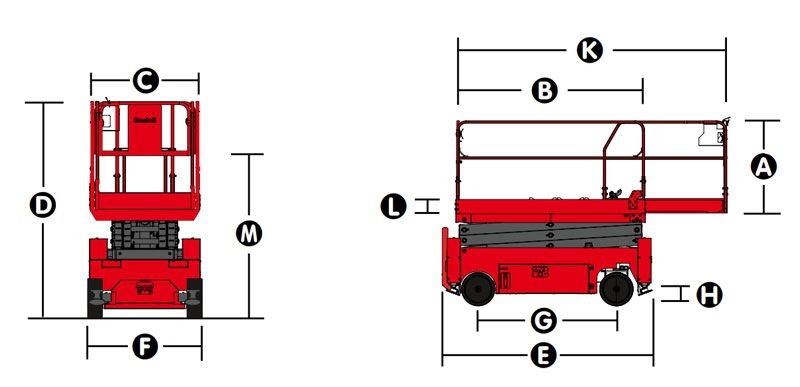

Dimension of the platform BCA	2.3×1.15×1.1 m
Platform skirting board height L	0.17 m
Overall length and width E*F	2.55×1.2 m	2.8*1.2 m
Height stowed D	2.25 m	2.4 m	2.53 m	2.65 m	2.82 m
Height-guardrails folded M	1.64 m	1.76 m	1.88 m	2.05 m	2.17 m
Wheelbase G	1.68 m	1.88 m
Ground clearance H	0.15 m	0.14 m
Turning radius-outside	2.4 m	2.64 m
Raising time/lowering time	32/30 s	45/30 s	55/37 s	75/50 s	86/50 s
Drive speed-raised	0.7 km/h
Weight	2270 kg	2880 kg	3110 kg	3295 kg	3575 kg

Advantages

Safety: Provides a secure and stable platform for workers, reducing the risk of falls and accidents.
Efficiency: Allows for quick and easy access to elevated work areas, improving productivity
Versatility: Can be used indoors and outdoors, suitable for a wide range of applications.
Compact Design: Many models are designed to fit through standard doorways and narrow aisles, making them easy to transport and store

Application

Construction and Maintenance: Used for tasks such as painting, plastering, electrical work, and general maintenance in buildings and construction sites.
Warehousing and Logistics: Ideal for accessing high shelves, performing inventory checks, and managing goods in storage facilities.
Manufacturing: Used for assembly, repair, and maintenance tasks in manufacturing plants.
Facility Management: Used in maintenance of large facilities like airports, stadiums, and shopping malls.
