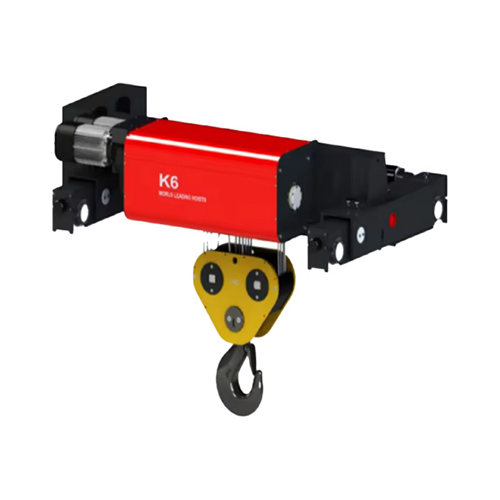

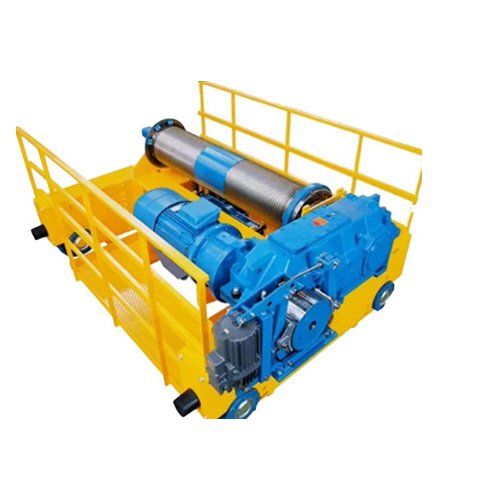

Hoist Trolley

A hoist trolley is a wheeled device that travels along a beam or rail, carrying a hoist which lifts and lowers loads. It allows for the horizontal movement of loads, enhancing the versatility and functionality of lifting systems. Hoist Trolley is an ideal material lifting equipment applied in manufacturing plant, assembly workshop, transit station, Train maintenance station, etc.

The transmission device adopts the domestic advanced point-line meshing gear structure. The overall structure is compact and reasonable, and the operation is simple and convenient;
Adopting 13 proprietary technologies and utilizing frequency conversion control design to reduce the impact force and realize precise positioning;
Safe and efficient operation, in line with the current low noise and environmental protection requirements;
Whole body maintenance-free design, less wearing parts, easy maintenance;

Product Description

Technical Parameter

Parameter	Specification
Load Capacity	5 tons
Beam Width	75mm – 250mm
Trolley Dimensions	400mm (L) x 300mm (W) x 150mm (H)
Wheel Diameter	125mm
Wheel Material	Forged Steel
Number of Wheels	4
Travel Speed	20 m/min (motorized)
Motor Power	1.5 kW
Voltage	220V/380V, 3-phase or customized
Control Type	Push button control
Travel Limit Switches	Yes
Braking System	Electromagnetic brake
Overload Protection	Yes
Anti-Drop Bars	Yes
Operating Temperature	-20°C to +40°C
Environmental Protection	IP54

Advantages

Height and Weight Efficiency: Cost-Effective Construction; Lightweight Design for Easy Installation
Heavy-Duty Capability: Sustained Heavy Load Operations; Structural Integrity for Intensive Workloads
Flexible Drivetrain: Low Internal Stress for Enhanced Durability; High Transmission Efficiency for Versatile Lifting Equipment
Maintenance-Free Operation: Intelligent Anti-Sway and Anti-Skew Systems; Self-Diagnostic System for Fault Prevention

Application

Manufacturing and Assembly PlantsMaterial Handling: Hoist trolleys are used to transport raw materials, semi-finished products, and finished goods within the production facility. They enhance workflow efficiency by allowing quick and easy movement of materials between different workstations. Assembly Line Operations: They play a crucial role in lifting and positioning components during the assembly process, ensuring precision and reducing manual labor.
Warehousing and LogisticsLoading and Unloading: Hoist trolleys facilitate the loading and unloading of goods from trucks, containers, and storage racks. They help streamline warehouse operations by improving the speed and safety of material handling. Inventory Management: In warehouses, hoist trolleys are used to organize and retrieve items, optimizing storage space and reducing the time needed for inventory management tasks.
Construction SitesHeavy Lifting: Hoist trolleys are employed to lift and place construction materials, such as steel beams, concrete blocks, and prefabricated sections. They enhance construction efficiency by enabling the precise positioning of heavy materials. On-Site Assembly: They assist in the assembly of large structures, including bridges, buildings, and towers, by providing the necessary mobility and lifting capability.
Heavy Equipment ManufacturingComponent Handling: In the manufacturing of heavy machinery and equipment, hoist trolleys facilitate the handling of large and heavy components, improving efficiency and safety. Assembly Assistance: They assist in the assembly of complex machinery by providing the necessary lifting and positioning capabilities.
