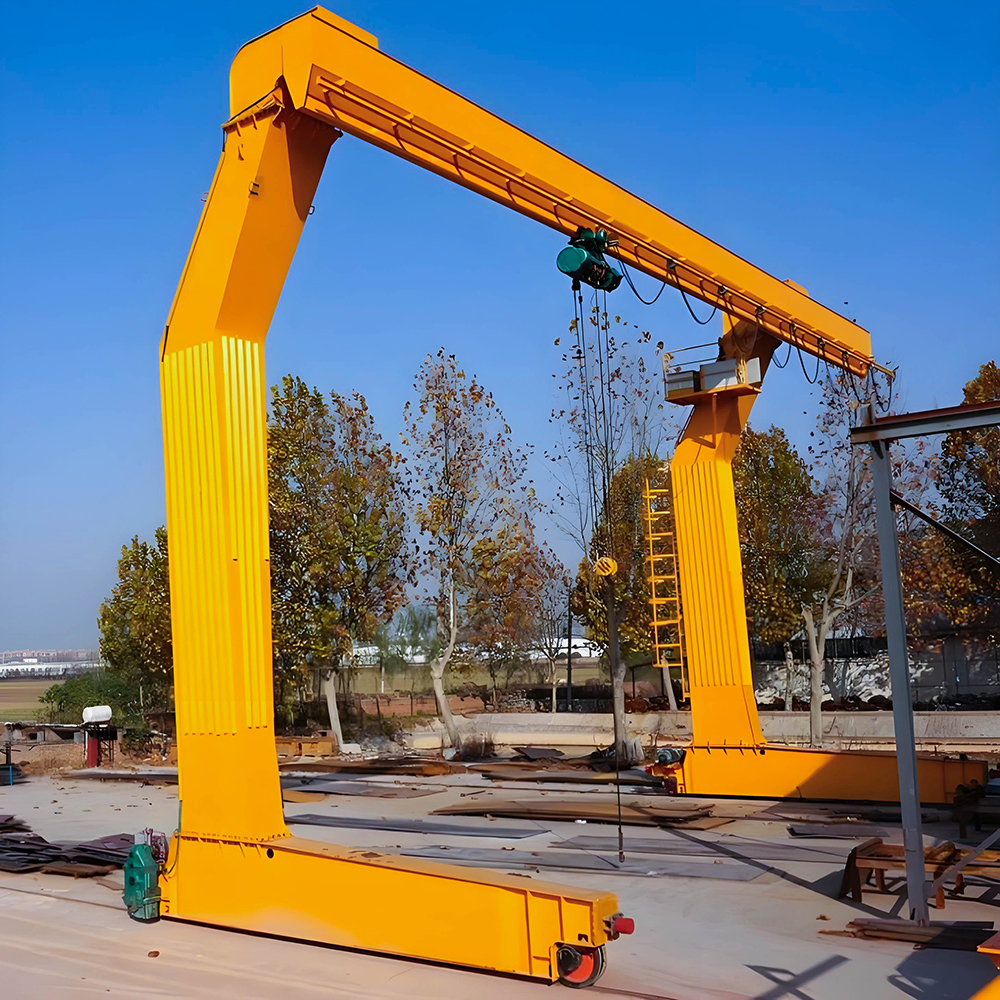

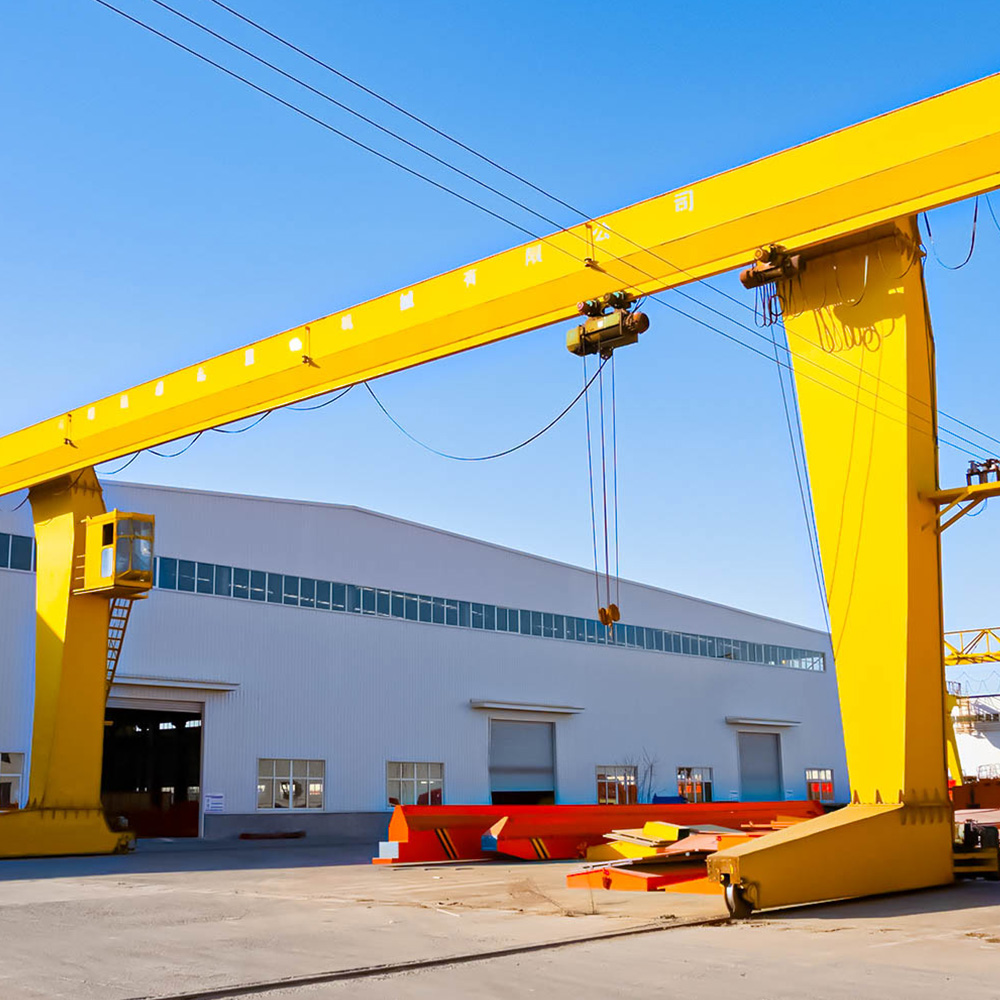

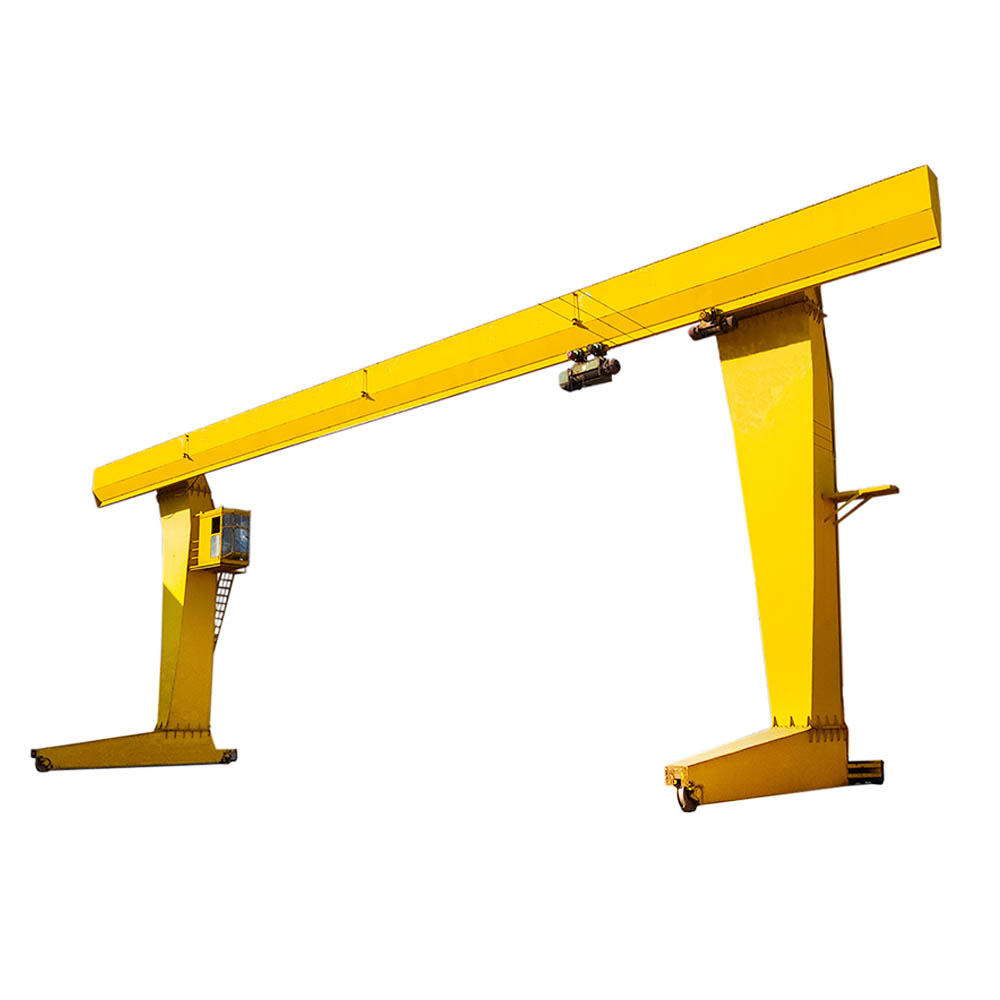

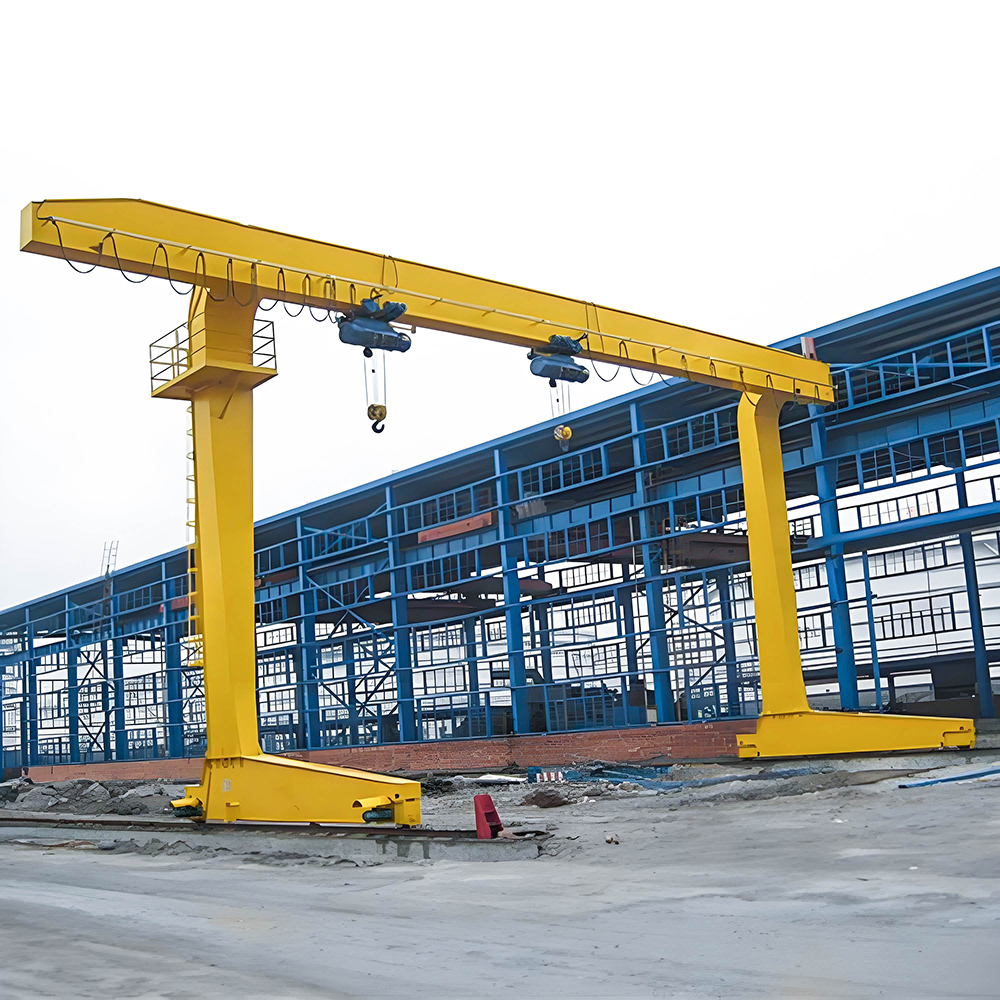

L Type Single Girder Gantry Crane

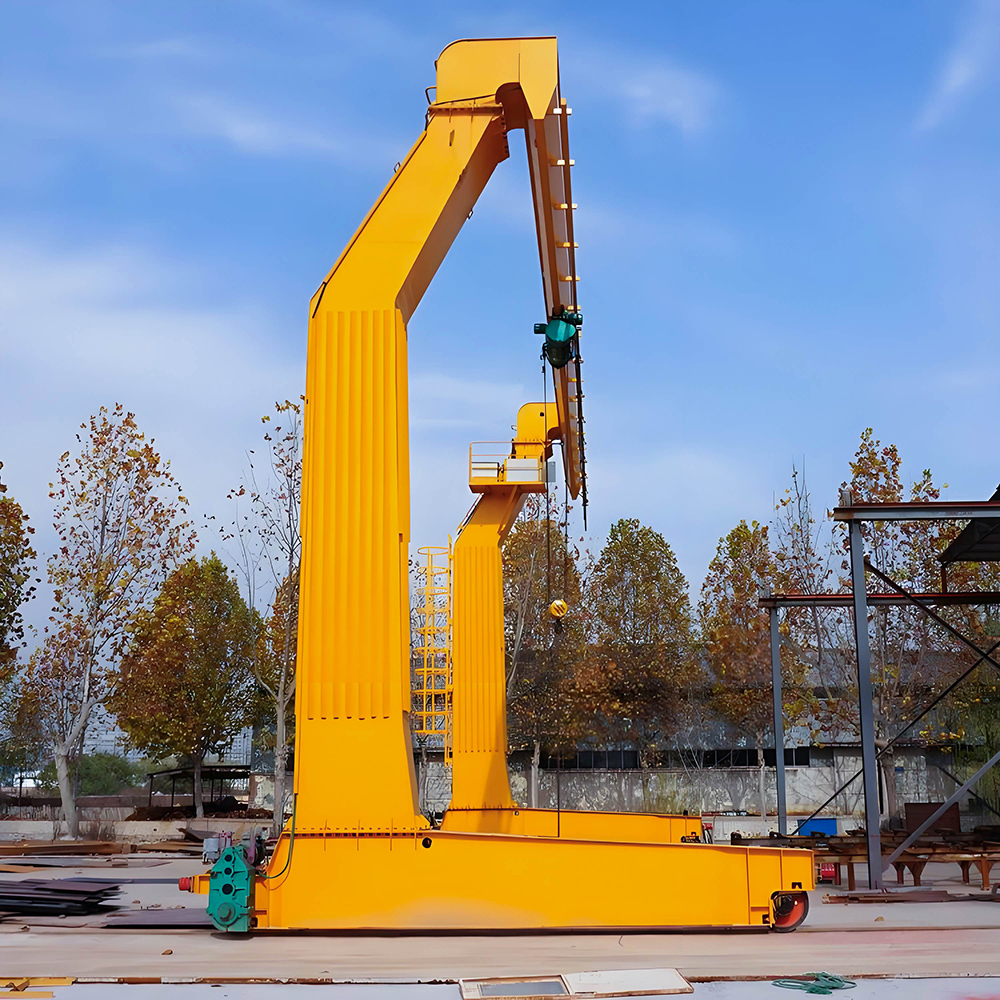

L-Shaped Legs: The distinctive "L" shaped supports that hold up the main girder. One leg is vertical while the other is angled, providing better clearance and workspace.
Main Girder: The single girder that spans the width of the crane. It supports the hoist and trolley and bears the load being lifted.
Hoist: The mechanical device that lifts and lowers the load. It is attached to the trolley and moves along the girder.
Trolley: moves the hoist horizontally along the main girder.
End Carriages: at each end of the main girder that house the wheels allowing the crane to move along the rails.
Rail Tracks: the fixed tracks on which the crane moves horizontally. They are usually installed on the ground

Product Description

An adaptable lifting solution for handling a range of materials and loads in industrial settings is the L type single girder gantry crane. Because of its distinctive “L” shaped legs, the crane has more room underneath it and has more stability and clearance to handle heavy loads.
The L type single girder gantry crane is used for common material handling tasks like lifting, transporting, loading, and unloading in outdoor freight yards and along railroad tracks.
The structural elements of an L-type gantry crane are reduced at a given lifting height. Consequently, the price is reduced. Its light weight, light wheel load, and dependable operation are its features.

Technical Parameter

Lifting Capacity	Main Hook	ton	5	10	16	20	32	50
Lifting Capacity	Auxiliary Hook	ton	/	/	3.2	5	5	10
Span		m	18-35
Lifting Height		m	10/11				10/12
Working Duty			A5
Working Speed	Main Hook	M/min	9.2	8.5	7.9	7.1	6.3	5.9
	Auxiliary Hook		/	/	11.2	9.2	9.2	8.5
	Trolley Travelling		36.6	39.7	39.5	39.3	38.6	38.5
	Crane Travelling		46.25/40.1	39.6/40.1	40.1/47.1		48.2/38.6	39.7
Power Supply			220v-440v 3phase 50Hz or customized

Advantages

Optimal Space Utilization: the L-shaped leg design provides more workspace and better clearance for large or irregularly shaped loads.
Cost-Effective: simpler and lighter design reduces installation and maintenance costs.
Versatility: suitable for a wide range of applications, from light to heavy lifting tasks.
Ease of Maintenance: simple structure with fewer components makes maintenance easier and less frequent.
Enhanced Safety: comprehensive safety features ensure the protection of operators and materials.

Application

Workshops: handling materials and machinery for maintenance and production.
Warehouses: loading and unloading goods, organizing inventory.
Construction Sites: transporting construction materials and equipment.
Outdoor Yards: handling large and bulky items in storage yards.
Fabrication Shops: lifting and positioning heavy components during fabrication processes.
