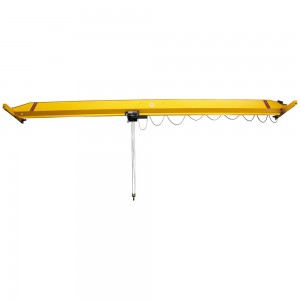

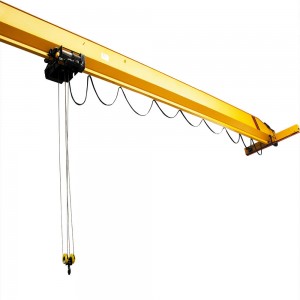

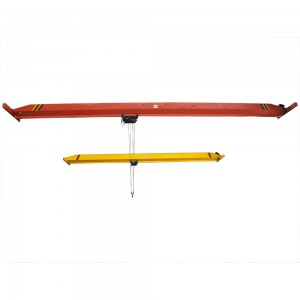

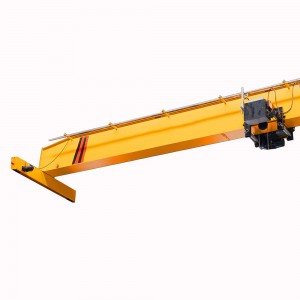

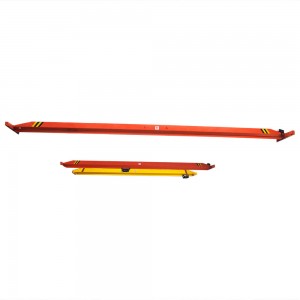

Single Girder Overhead Crane

Standard Capacity1t/2t/3t/5t/10t/16t/20t or customized on demand
Span length7.5m-31.5m
Lifting height6m/9m/12m/18m/24m/30m
Work dutyA3/A4
Rated voltage220V/380V/400V/415V/660V, 50-60Hz, 3ph AC
Crane control modeFloor control / Remote control / Cabin room control
Traveling speed20-30m/min

Product Description

Single girder overhead crane is a lifting equipment that is horizontally mounted above workshops, warehouses and material yards for lifting materials. Its two ends are located on tall concrete columns or metal brackets, and its shape is like a bridge. It runs longitudinally along the tracks laid on the elevated platforms on both sides, which can make full use of the space under the bridge to lift materials without being hindered by ground equipment. It is the most widely used and largest type of lifting machinery. Single girder overhead cranes are usually equipped with CD1 or MD1 wire rope electric hoists, and the lifting mechanism can be single-speed or double-speed. It has the advantages of compact appearance, light weight, low wheel pressure, stable running speed, and easy installation and maintenance. It is suitable for maintenance operations, material handling and other places such as warehouses, workshops, power stations, etc.

Technical Parameter

Capacity( Ton)	1	2	3	5	10	16	20	32
Span(m)	5-28.5
Lifting Height(m)	6、9、12、18、24、30
Working Duty	A3
Control way	Pendant Control or Remote Control
Power Source	220V/380V 50HZ 3Phase or customized
Wheel Diameter(mm)	37-70
Electric Hoist Lifting and Travelling Mechanism
Electric Hoist Model	CD 1 Single Speed, MD 1 Double Speed
Lifting Speed (m/min)	Single	8
	Double	0.8/8
Traveling Speed(m/min)	20 or 30
Crane Traveling Mechanism
Motor Power(KW)	0.82 1.52

Advantages

Cost-effective Lower material and installation costs compared to double girder cranes.
Easier installationDue to their lighter weight, they are easier and quicker to install.
VersatilityCan be used in various environments and for different types of loads.

Application

ManufacturingUsed in assembly lines and manufacturing plants to transport raw materials and finished products.
WarehousingFacilitates the movement of heavy items in warehouses, improving storage and retrieval efficiency.
MaintenanceEmployed in maintenance workshops for lifting and positioning machinery and equipment.
Steel IndustryUsed for handling heavy steel components and materials in steel plants.
