Travel Lift Yacht crane

Multi-lifting point arrangement, safe and reliable lifting, each lifting point spacing can be adjusted to meet the needs of different hulls;
Support a variety of steering functions, in situ rotation, Ackerman steering, flexibility;
Adopt multiple lifting points synchronous lifting, tire anti-slip technology;
Synchronous detection and feedback control;
It can realize the stress release of complex road gantry frame;
The main structure is a "U" structure, which can carry boats that are higher than the height of the transport ship itself;
Lifting adopts U-shaped design, one machine can be applied to a variety of ship types;
Multi-layer protection, suitable for high corrosion coastal environment;

Product Description

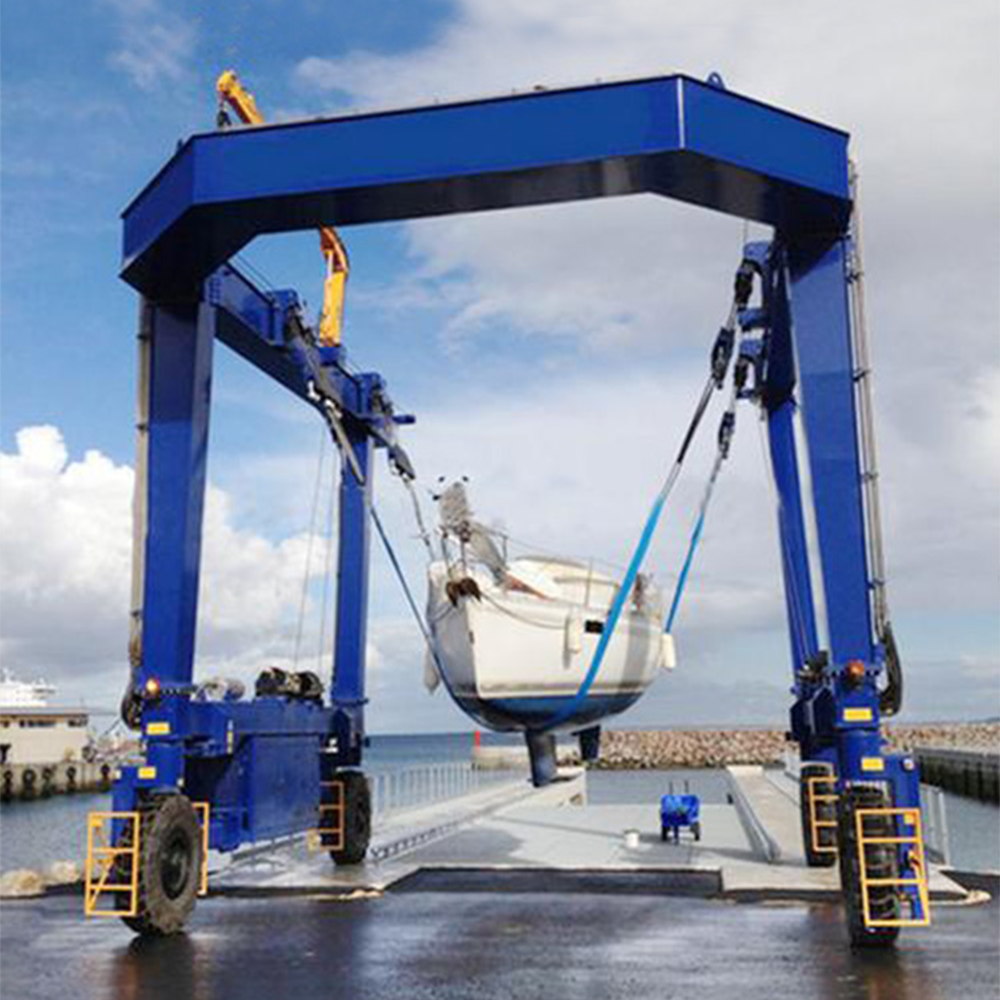

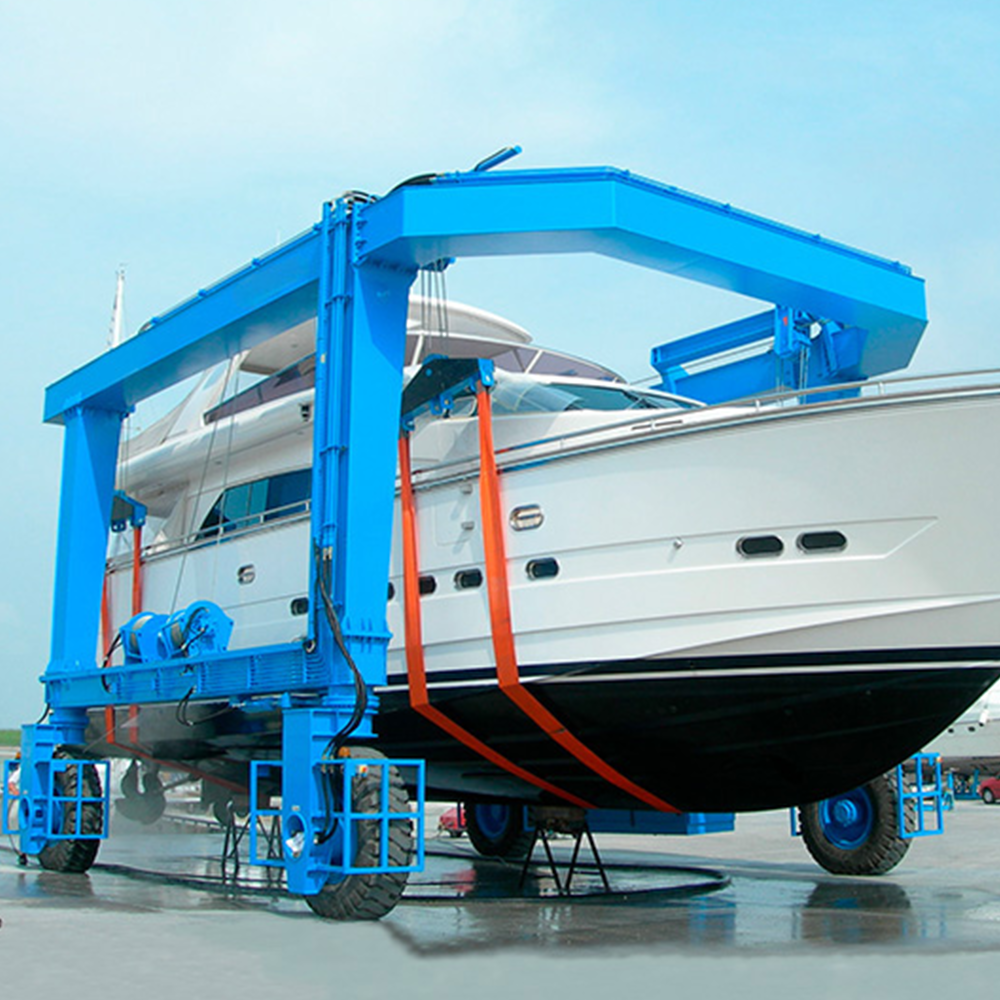

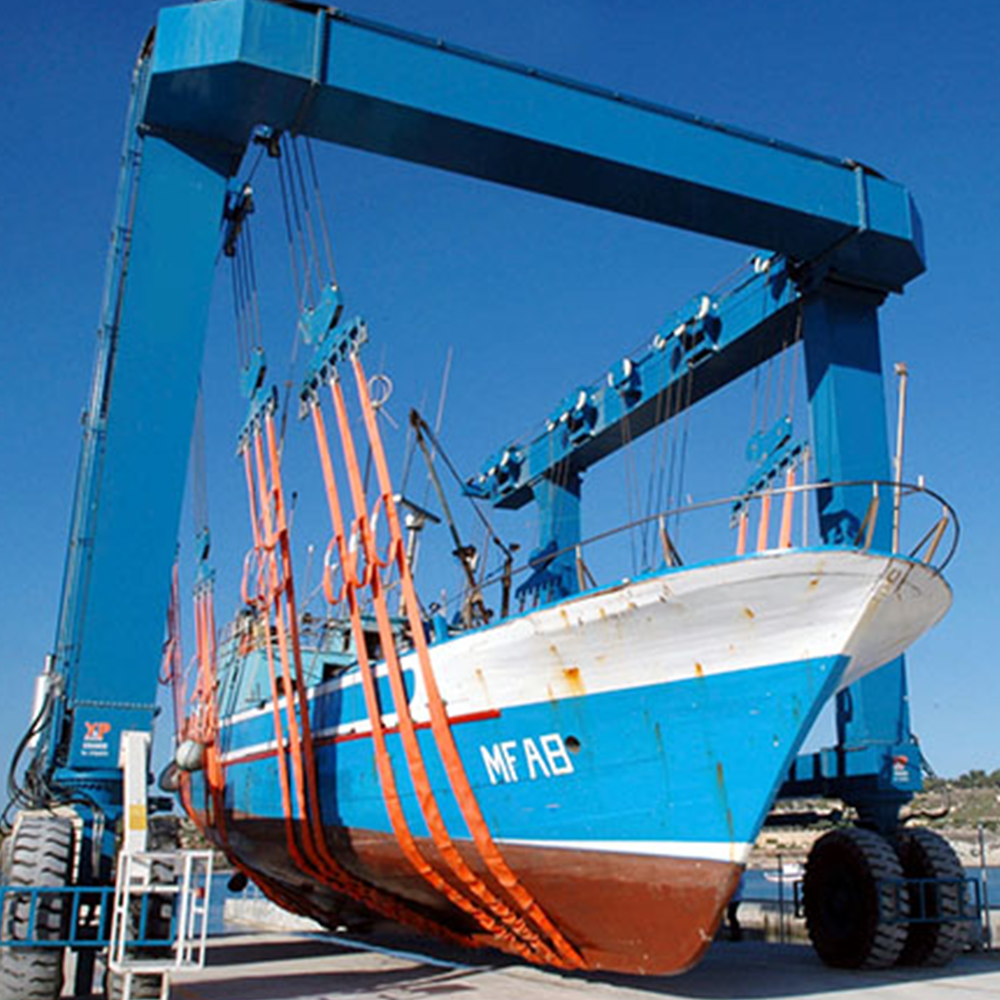

Boat crane is also known as travel lift, yacht crane and boat hoist, which includes the following items: main structure, traveling wheel block, lifting mechanism,steering mechanism, hydraulic transmission system, electric control system, the main structure for the “U”type ,it can transfer the boat which the height surpass its height.
According to different requirements of our customers, the Boat Hoist Crane can handling different tons boat or yacht (10T-500T) from the shore side, it can be used for the maintenance on the shore side or can put the new boat inside the water. It adopts the soft and firm belt to lift the boat, yacht; it will never hurt the surface.
The crane also can put the boat in sequence quickly with small gap between each two boats.
Electrical system uses PLC frequency adjustment which can easily control every mechanism.
Control Methods: Cabin control / remote control or Cabin control + remote control.

Technical Parameter

Rated capacity		100	150	200	300
（kg/cm²）Grounding specific pressure		11.5	11	11.5	6.5
（m/min）Grade ability		2%	4%	4%	4%
（m/min）	Full load	0~2	0~1	0~2	0~1
Lifting speed	Non-load	0~5	0~4	0~3	0~3
（m/min）	Full load	0~20	0~20	0~20	0~20
Running speed	Non-load	0~35	0~35	0~35	0~35
Working Ambient temperature		-20℃+50℃	-20℃+50℃	-20℃+50℃	-20℃+50℃

Advantages

Low maintenance and operating costs;
Environmental protection;
Small space required;
Simple operation;
Personalized design and color

Application

Yacht crane (also known as travel lift), is a kind of mobile lifting equipment for yacht handling and maintenance, with lifting safety and reliability, a variety of steering methods, with its own power, flexibility and other characteristics, with multiple lifting points synchronous lifting, tire anti-slip technology, synchronous detection feedback control, flexible steering control, complex road and bridge internal force release technology.
