Truss Type Single Girder Gantry Crane

Single girder truss type gantry crane is a crane that consists of a single girder supported by a truss structure. The truss design provides additional strength and reduces the overall weight of the crane. The lifting mechanism, usually a hoist, moves along the single girder to lift and transport loads. This type of crane is commonly used in outdoor applications where wind loads and other environmental factors are a concern.

Load Capacity: Typically ranges from a few tons to around 20 tons.
Span: Usually ranges from 5 meters to 30 meters, depending on the specific application.
Lifting Height: Customizable, typically ranging from a few meters to 15 meters.
Power Supply: Generally powered by electricity, with specifications tailored to the operational environment.
Speed: Includes hoisting speed and gantry travel speed, which can be adjusted based on the application needs.

Product Description

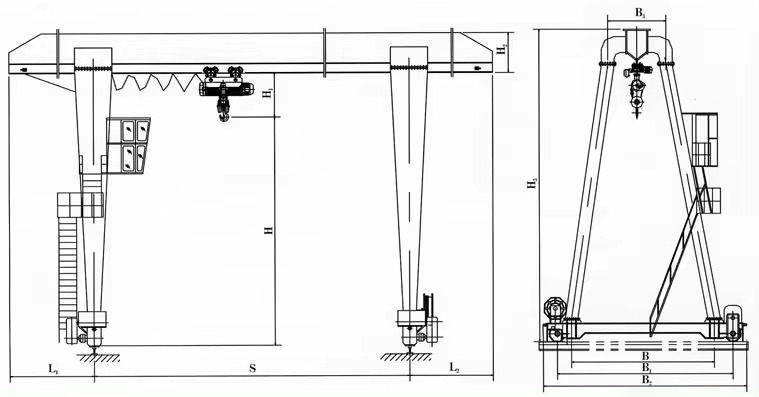

Technical Parameter

Capacity	Ton	5~20
Span	m	12~30
Lifting height	m	6~12
Lifting speed	m/min	3~8
Travelling speed	m/min	20~30
Drive type		Motor driven for all motions
Duty Class		A3
Power source		220V/380V, 50HZ, 3 phase (or cuntomized)
Working temperature		-20~40℃
Control model		Pendant pushbutton control or remote control or cabin control

Advantages

Cost-Effective: Generally more economical than double girder cranes due to simpler design and lighter weight.
Lightweight: The truss design reduces the overall weight of the crane while maintaining strength, leading to lower foundation requirements and easier installation.

Application

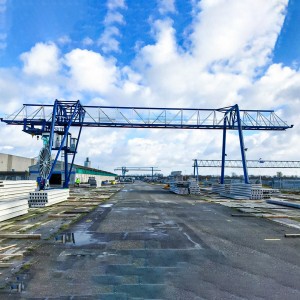

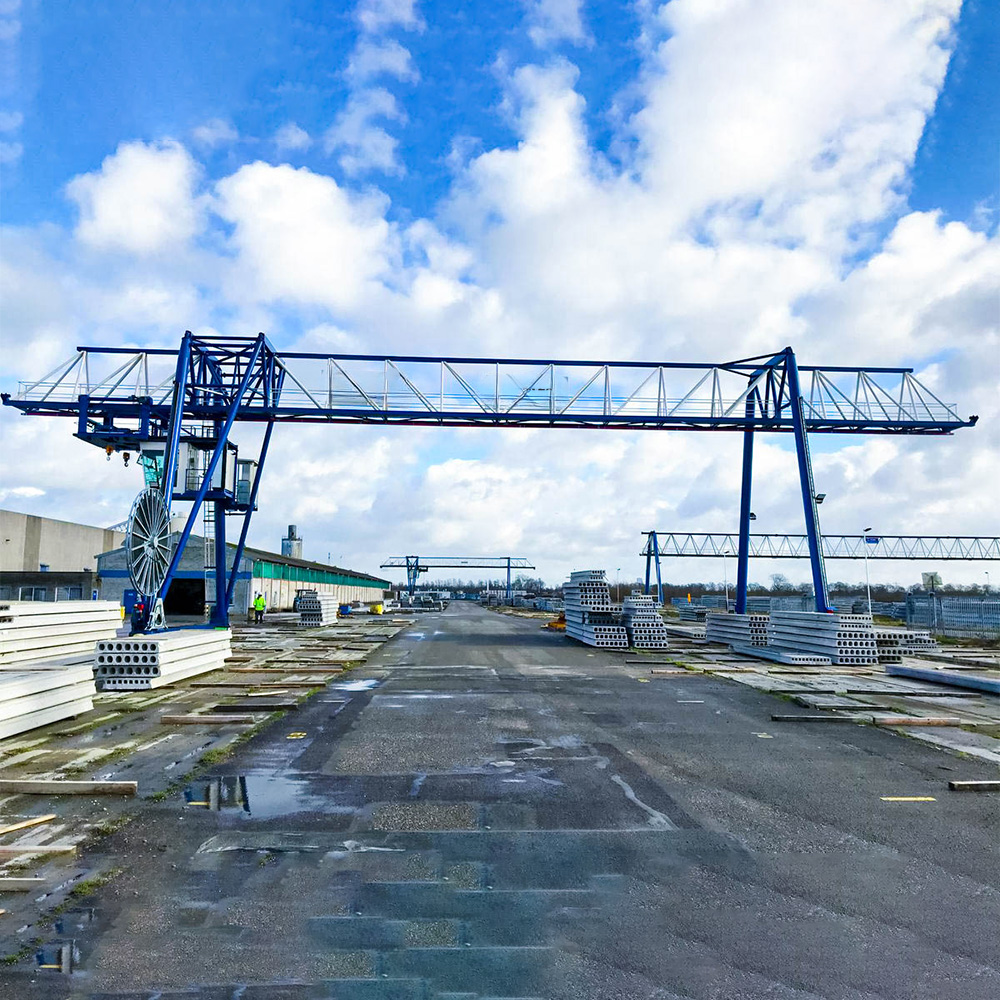

Outdoor Yards: Ideal for material handling in outdoor settings such as storage yards and construction sites.
Logistics and Shipping: Used in ports and terminals for loading and unloading containers and other heavy goods.
Railway Yards: For handling railway components and cargo.
Manufacturing: Used in manufacturing plants where lightweight but strong lifting is needed.
Workshops: Suitable for smaller workshops with moderate lifting requirements.
