Wall Travelling Jib Crane

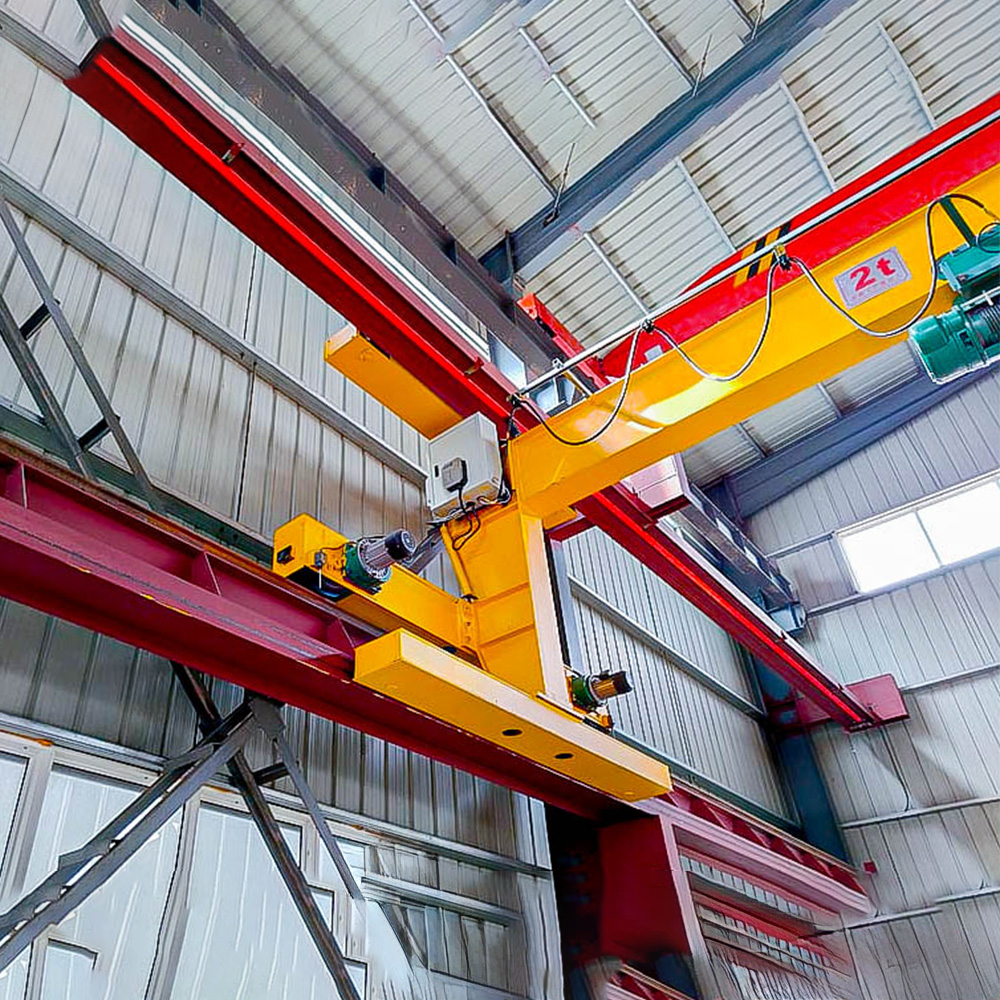

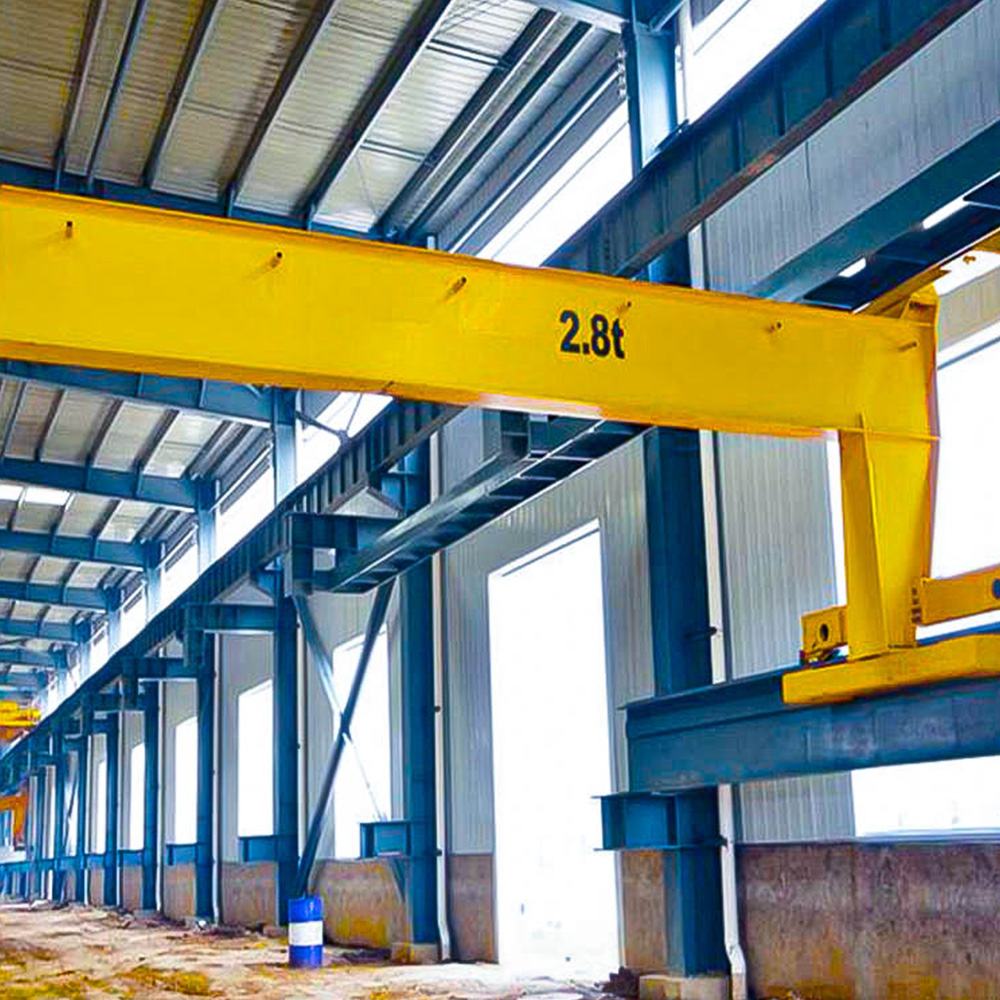

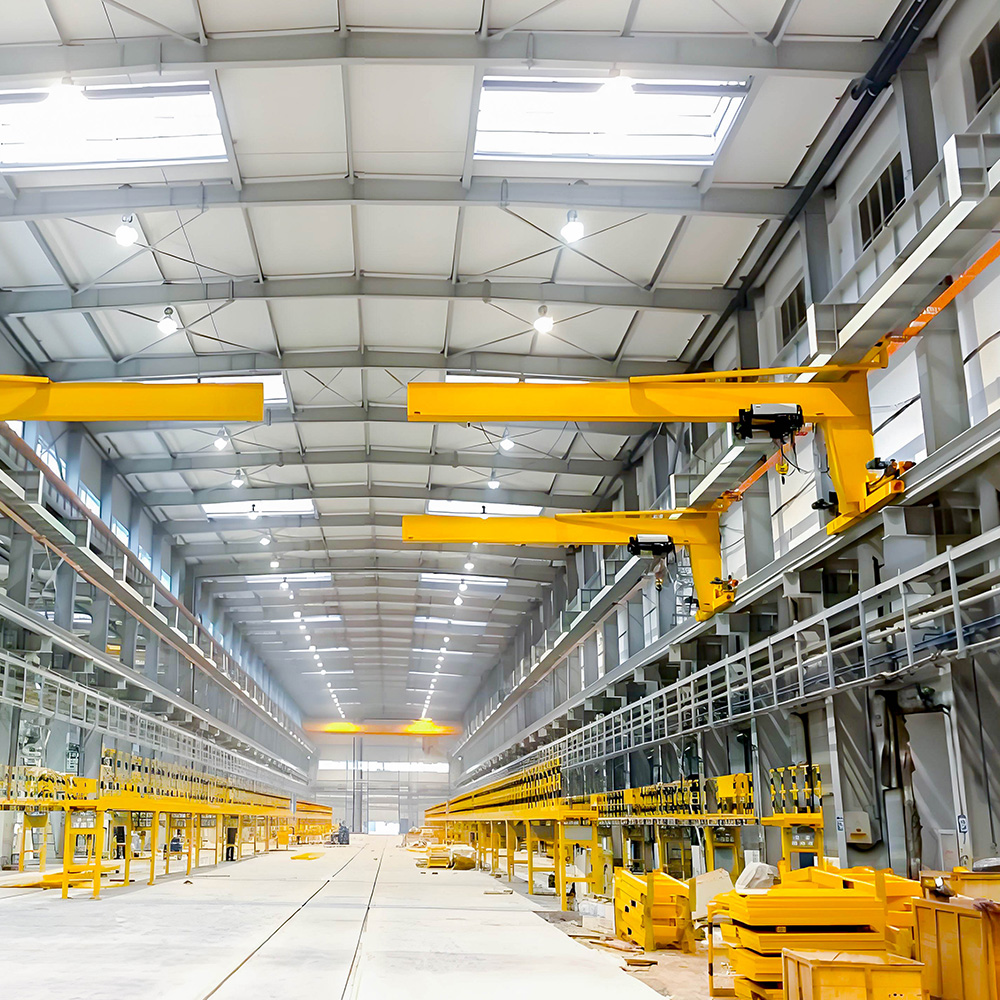

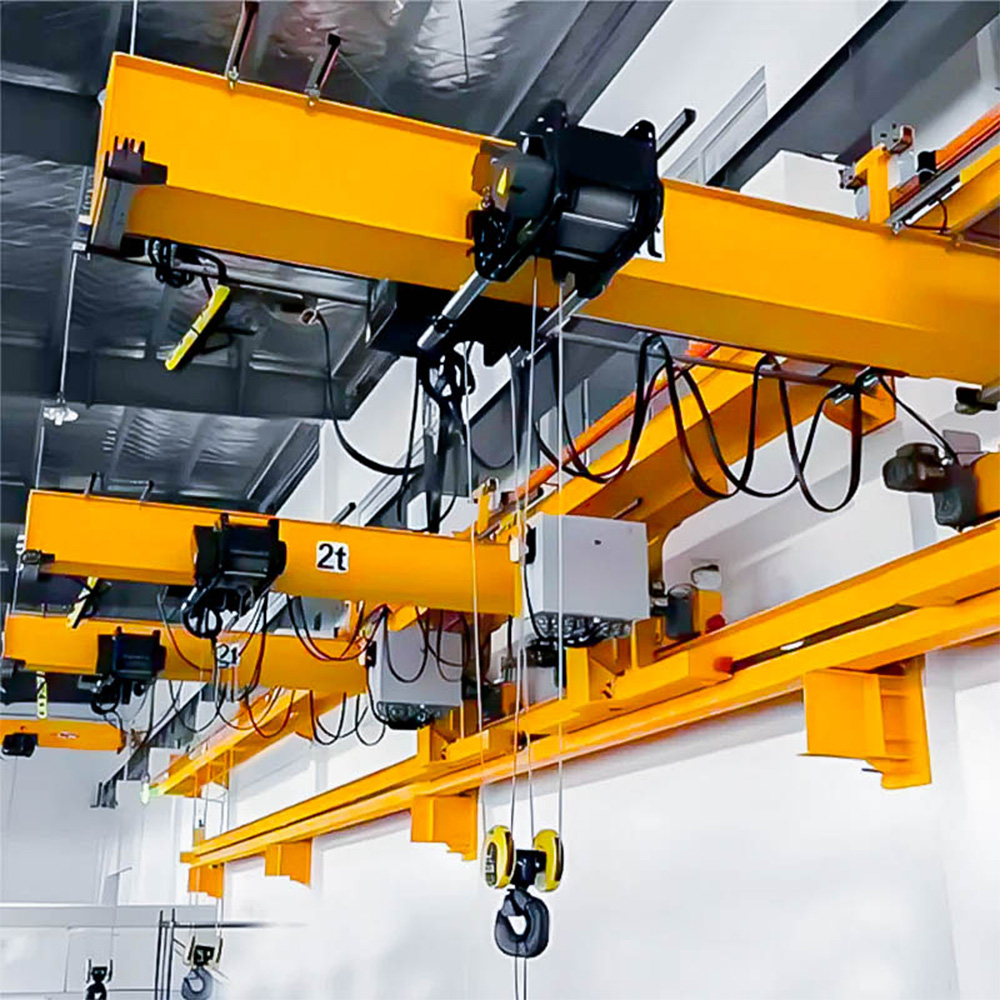

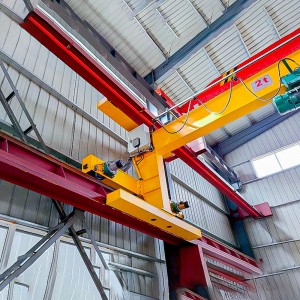

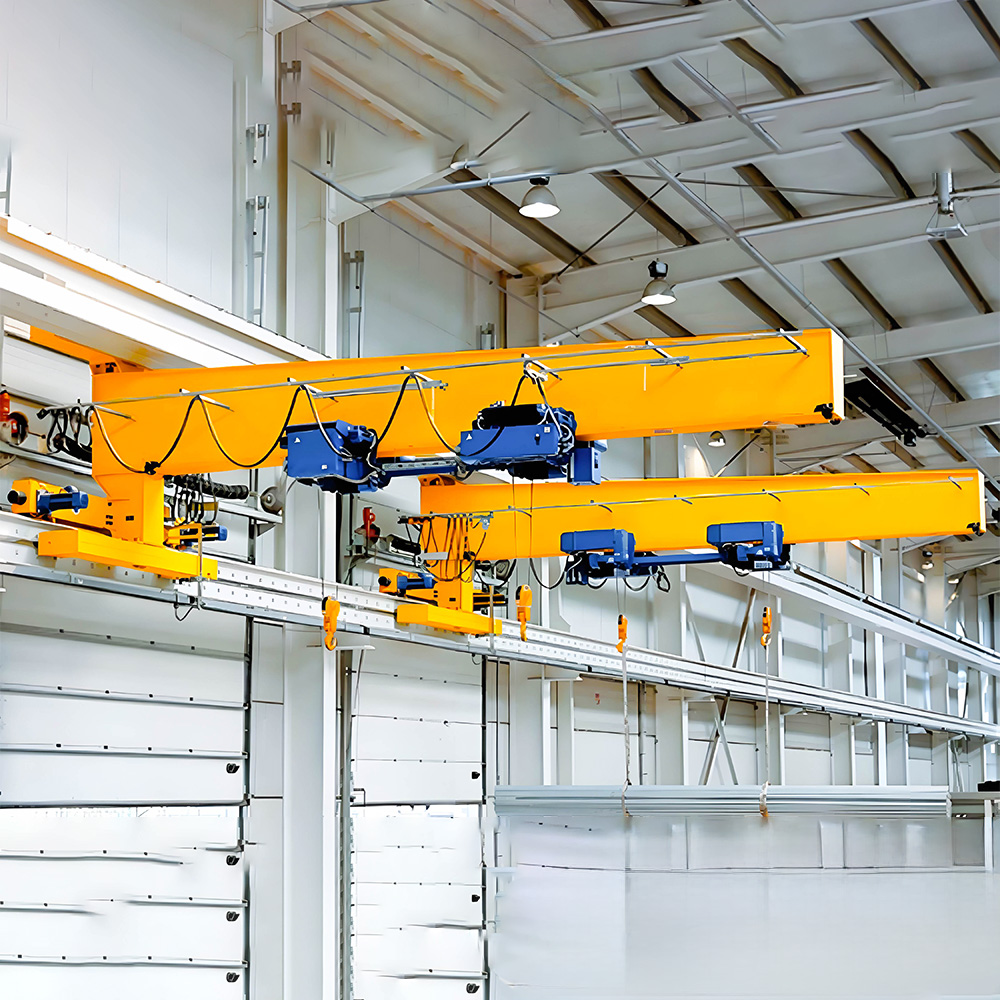

Wall traveling jib crane (abbreviated as wall travel crane, also known as wall travel jib crane, wall travel jib crane, wall jib crane installed). It is a new type of material lifting equipment developed on the basis of wall column jib crane. The running track of the machine is mounted on the cement pillar of the factory and can be moved longitudinally along the track. At the same time, the electric hoist can complete the horizontal movement along the cantilever and the lifting in the vertical direction.

small and medium-sized lifting equipment
Safe, reliable, efficient, energy-saving, time-saving, labor-saving, flexible
Electric or manual rotation
In the case of short-distance, concentrated lifting
It is simpler and cheaper than an overhead crane or gantry crane with the same capacity

Product Description

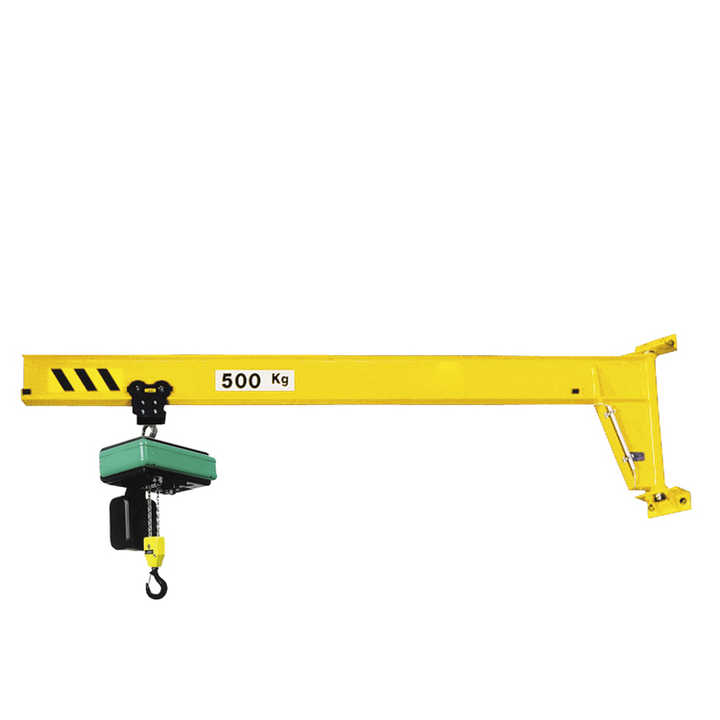

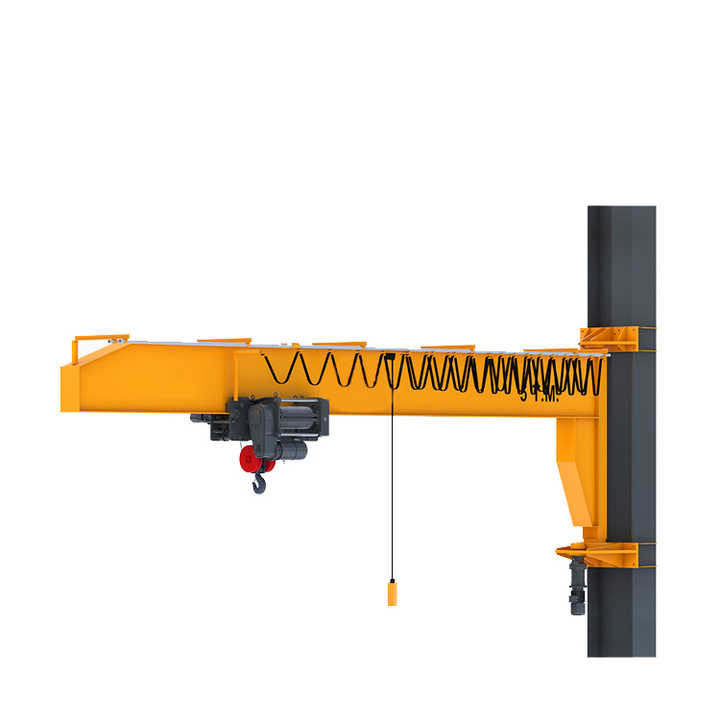

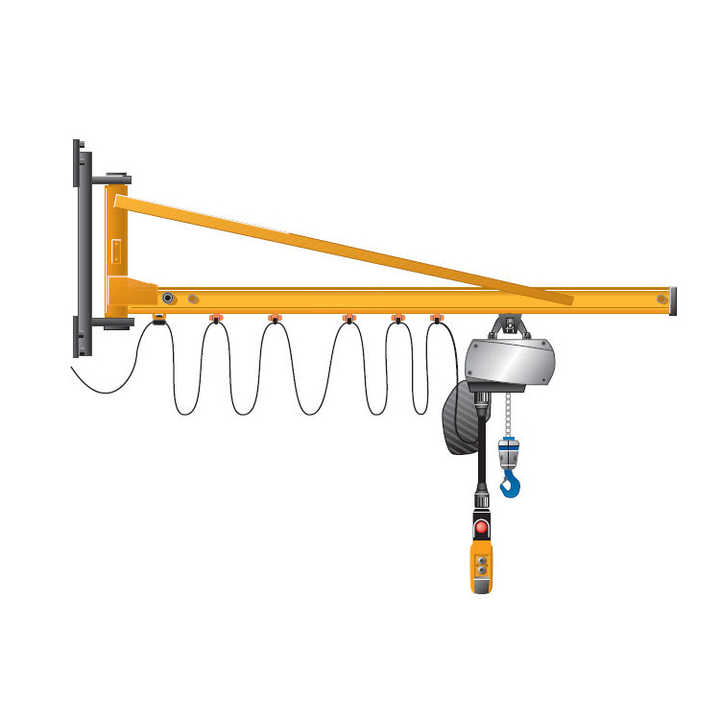

Workshop wall jib cranes with electric hoist are wall jib cranes with 360 ° swivel beam, European style and customized design. The Workshop Wall Jib Crane with Electric Hoist is a lightweight lifting device with a lifting capacity of 250 kg – 5000 kg, consisting of a main beam, an end frame, a drive mechanism, a chain hoist or an electric hoist.

Technical Parameter

project	data
capacity	0.25-5t
Lift height	2-10 US
Rotation angle	360°
Lift speed	1.25-10 m/min
Travel speed Lifting mechanism Rotation speed	14-20 m/min
power supply	220v/380v 50hz 3 phase or customized
other	Depending on your specific application, specific models and designs will be available

Advantages

Installation with high-strength bolt connection
Easy to operate, safe and flexible to steer
Low noise, spacious cabin and beautiful.
High quality and high efficiency, competitive price.
The overall structure is reasonable and simple, light in weight, and in line with national standards.
The inexpensive disposal system does not require modification of the surrounding building structure.

Application

It is widely used in machinery, metallurgy, automobile, shipbuilding, glass, paper making, chemical industry and so on. It can be customized according to your different requirements.
